Weichai Power Diesel Generator Set

Gutai Machinery is a leading China weichai power diesel generator set manufacturer. Weichai Power diesel generator sets are widely used in agricultural machinery, commercial vehicles, ships, power generation equipment and other fields.

Send Inquiry

Product Description

Gutai Machinery is China manufacturer and supplier who mainly produces weichai power diesel generator set with many years of experience. Weichai power diesel generator set is a leading diesel engine manufacturer in China. It mainly produces diesel engines, diesel generator sets, engineering machinery, rail transit power systems and other products, which are widely used in agricultural machinery, commercial vehicles, ships, power generation equipment and other fields.

Weichai power diesel generator set cylinder design is sturdy and durable, with low vibration and noise; inline six-cylinder four-stroke, stable operation and high efficiency; replaceable wet cylinder liner, long life and easy maintenance; one cylinder and one cover, 4 valves per cylinder, sufficient air intake, forced water cooling, small heat radiation and excellent performance.

These design features make the generator set more stable and reliable during operation. Weichai power diesel generator set adopts advanced technology, superior performance and good reliability. The engine excitation system can quickly recover the frequency fluctuation of the unit at any instantaneous load.

Weichai power diesel generator set product advantages:

1. Low fuel consumption, low emissions, low noise

2. Excellent unit performance, advanced technology, reliable operation, easy maintenance

3. High pressure regulation accuracy, good dynamic performance, compact structure, long service life

4. Weichai products are subjected to high altitude, high temperature, high cold, "three high" experiments all year round, and have strong environmental adaptability

5. Rapid start-up and can quickly reach full power in just a few seconds. Emergency within 1 minute with full load (normal 5~30MIN) The shutdown process is short and can be started and stopped frequently.

6. Simple maintenance operation, less people, easy maintenance during standby period.

7. The comprehensive cost of construction and power generation of diesel generator sets is the lowest.

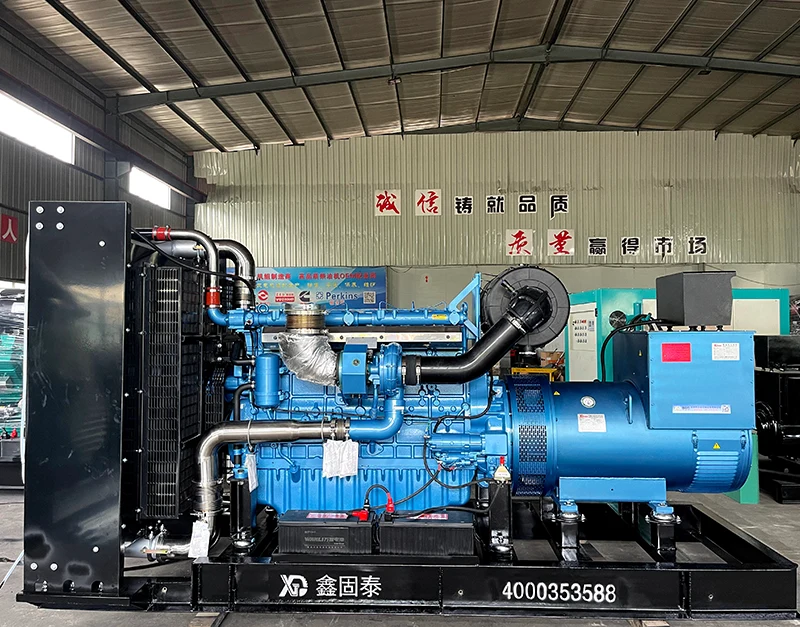

Weichai Power 400KW

1、 Technical parameters of generator set
Unit model	XGT-400	manufacturer	Quanzhou Gutai Machinery Equipment Co., Ltd
Voltage recovery time	≤ 1Ｓ	Steady state frequency regulation	≤ 1％
Rated voltage	400V/230V	Frequency stabilization time	≤ 3 Ｓ
Rated frequency	50HZ	Transient frequency adjustment rate	≤ 1％
Electric system	three-phase four-wire system	Volatility rate	≤ 1％
Rated current	720A	Reference weight	3500Kg
Power factor	0.8 (lag)	Rotational speed	1500r/min
Steady-state voltage regulation rate	≤±1%	Reference external dimensions (Length * Width * Height)	320012501900（mm）
Transient voltage regulation rate	-15%～+18％	Cooling method	Boosting intercooling
Fuel grade	(Standard) 0 # light diesel oil (at room temperature)	Noise (LP7M)	Normal configuration ≤ 117dB (A)
2、 Technical parameters of diesel engine
Origin (brand)	Shandong (Weichai)	manufacturer	Weichai power company limited
Output power	490KW	model	WP13D490E310
Number of cylinders	6	Compression ratio	17:1
Piston aperture/piston stroke	127mm/165mm	Starting method	Electric start
Minimum fuel consumption rate	≤195g/kw.h	Starting power supply	DC 24V
Exhaust volume	12.54L	Speed regulation method	Electronic speed regulation
Fuel system	Electric controlled high-pressure common rail	Air intake system	Turbo
Diesel engine type	6-cylinder straight, 4-stroke	Emission limits for pollutants	Non road country III
3、 Technical parameters of generator
Brand	Xingutai	model	XGTW-400-4（400KW）
Excitation method	Brushless, excitation, self cooling	Protection level	IP22
Pressure regulating system	AVR automatic voltage regulation	Short term overcurrent	3-5 Ie not less than 5S
Insulation level	H	Overload capacity	1.5Ie not less than 2 minutes
Winding material	All copper wire winding	Phase number and connection method	Three-phase four wire system
Control system function: The unit is equipped with an LCD display screen, self starting and automatic shutdown function,intelligent control system, and protection functions such as low oil pressure, high water temperature, overspeed, low speed, overload, and low electric storage voltage.

Weichai Power 550KW

1、 Technical parameters of generator set
Unit model	XGT-600	manufacturer	Quanzhou Gutai Machinery Equipment Co., Ltd
Voltage recovery time	≤ 1Ｓ	Steady state frequency regulation	≤ 1％
Rated voltage	400V/230V	Frequency stabilization time	≤ 3 Ｓ
Rated frequency	50HZ	Transient frequency adjustment rate	≤ 1％
Electric system	three-phase four-wire system	Volatility rate	≤ 1％
Rated current	1080A	Reference weight	4600Kg
Power factor	0.8 (lag)	Rotational speed	1500r/min
Steady-state voltage regulation rate	≤±1%	Reference external dimensions (Length * Width * Height)	380016502100（mm）
Transient voltage regulation rate	-15%～+18％	Cooling method	Boosting intercooling
Fuel grade	(Standard) 0 # light diesel oil (at room temperature)	Noise (LP7M)	Normal configuration ≤ 117dB (A)
2、 Technical parameters of diesel engine
Origin (brand)	Shandong (Weichai)	manufacturer	Weichai power company limited
Output power	670KW	model	6M33D670E200
Number of cylinders	6	Compression ratio	14.0:1
Piston aperture/piston stroke	150mm/185mm	Starting method	Electric start
Minimum fuel consumption rate	≤195g/kw.h	Starting power supply	DC 24V
Exhaust volume	19.6L	Speed regulation method	Electronic speed regulation
Fuel system	common rail	Air intake system	Turbo
Diesel engine type	6-cylinder straight, 4-stroke	Emission limits for pollutants	Non Road Country II
3、 Technical parameters of generator
Brand	Xingutai	model	XGTW-600-4（600KW）
Excitation method	Brushless, excitation, self cooling	Protection level	IP22
Pressure regulating system	AVR automatic voltage regulation	Short term overcurrent	3-5 Ie not less than 5S
Insulation level	H	Overload capacity	1.5Ie not less than 2 minutes
Winding material	All copper wire winding	Phase number and connection method	Three-phase four wire system
Control system function: The unit is equipped with an LCD display screen, self starting and automatic shutdown function,intelligent control system, and protection functions such as low oil pressure, high water temperature, overspeed, low speed, overload, and low electric storage voltage.

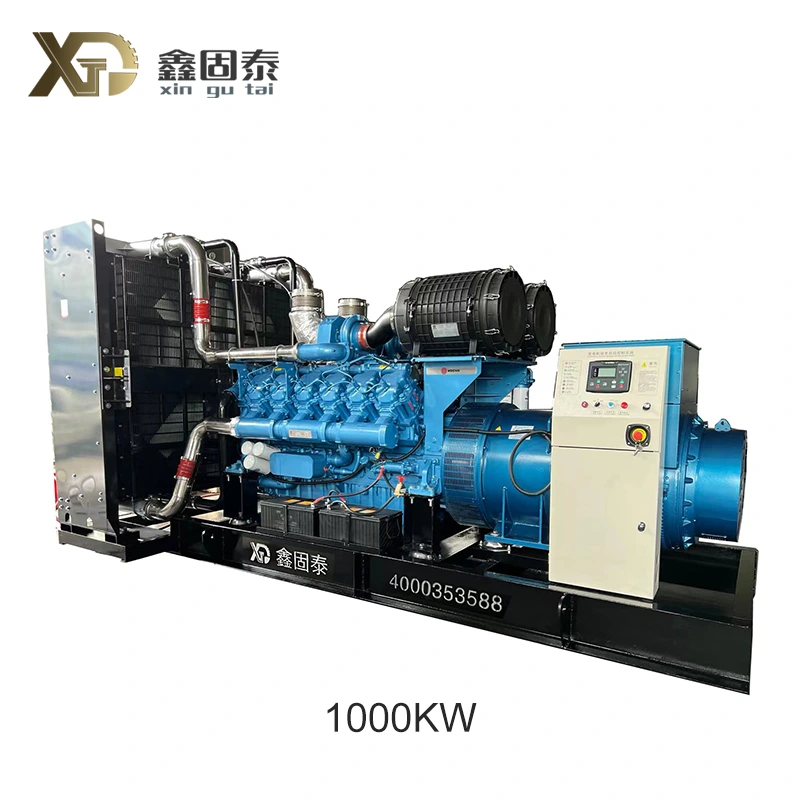

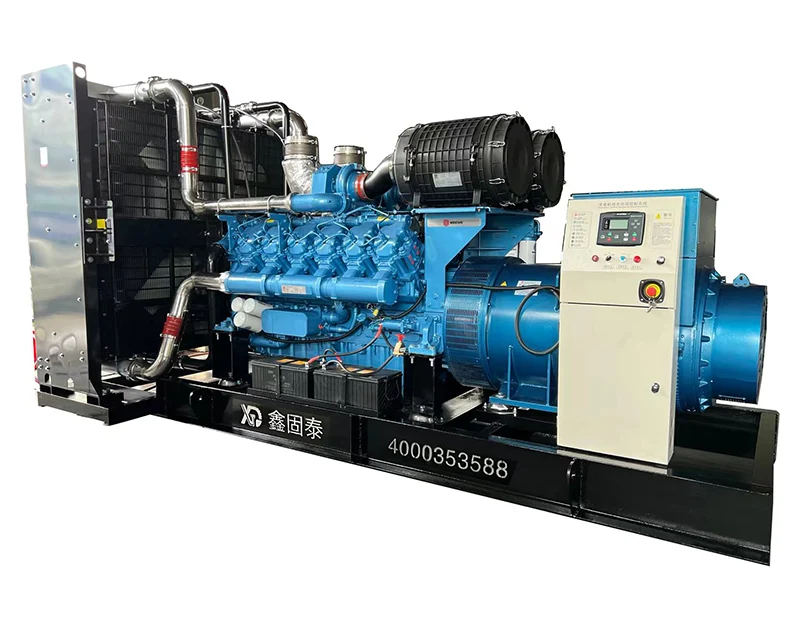

Weichai Power 1000KW

1、 Technical parameters of generator set
Model	XGT-1000	manufacturer	Quanzhou Gutai Machinery Equipment Co., Ltd
rated voltage	400V/230V	Steady state frequency regulation	≤1%
Rated frequency	50HZ	Frequency stabilization time	≤3S
Electric system	three-phase four-wire system	Transient frequency adjustment rate	≤1%
Rated current	1800A	Volatility rate	≤1%
Power factor	0.8 (lag)	Reference weight	8500Kg
Steady-state voltage regulation rate	≤±1%	Rotational speed	1500r/min
Transient voltage regulation rate	-15%~+18%	Reference external dimensions (Length * Width * Height)	480020002350(mm)
Voltage recovery time	≤1S	Cooling method	Closed water cooling
Fuel grade	(Standard) 0 # light diesel oil (at room temperature)	Noise (LP7M)	Normal configuration ≤ 117dB (A)
2、 Technical parameters of diesel engine
Origin (brand)	Shandong (Weichai)	manufacturer	Weichai power company limited
output power	1210KW	Model	12M33D1210E200
Number of cylinders	12	Compression ratio	17:1
Piston aperture/piston stroke	150mm/185mm	Start mode	Electric start
oil consumption	≤210g/kw.h	Starting power supply	DC 24V
Exhaust volume	26.14L	Speed Control	electronic speed control
fuel system	PT direct injection	Air intake system	turbocharging
Diesel engine type	V-shaped 12 cylinder, 4-stroke	Emission limits for pollutants	Non road country Phase II
3、 Technical parameters of generator
Brand	Xingutai	model	XGTW-1000-4(1000KW)
Excitation method	Brush, excitation, self cooling	protection grade	IP22
Voltage regulation system	AVR automatic voltage regulation	Short term overcurrent	3-5 Ie not less than 5S
Insulation level	H	Overload capacity	1.5Ie not less than 2 minutes
Winding material	All copper wire winding	Phase number and connection method	three-phase four-wire system
