Shangchai Power Diesel Generator Set
Gutai Machinery is a leading China shangchai power diesel generator set manufacturer. Shangchai power diesel generator sets have excellent power, economy, stability, reliability, operability and low operation and maintenance costs.
Gutai Machinery is China manufacturer and supplier who mainly produces shangchai power diesel generator set with many years of experience. Shangchai power diesel generator set is a product produced by Shanghai Diesel Generator Set Factory. Shangchai diesel generator has excellent power, economy, stability, reliability, operability and low operation and maintenance costs. In addition, Shangchai has complete after-sales service with national joint warranty and sufficient spare parts supply at various outlets.
Shangchai power diesel generator set product advantages:
1. Integral crankshaft, gantry body, flat-cut connecting rod, short piston, compact and reasonable appearance, strong matching adaptability.
2. Optimized design of lubrication and cooling system, reducing the number of external pipes and parts, using integral brushless AC generator to greatly improve the three leakages and greatly enhance reliability.
3. Adopting high vacuum new exhaust injection device, three-stage cyclone German paper filter air filter, low-temperature ceramic piston ring and other measures, the diesel engine will not produce early wear when used in deserts or high dust areas.

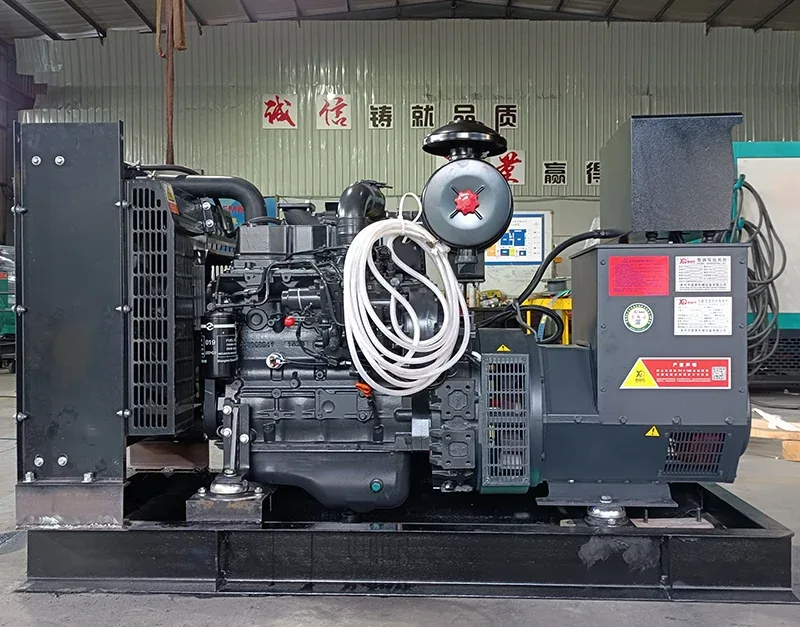

Shangchai power diesel generator set 50KW

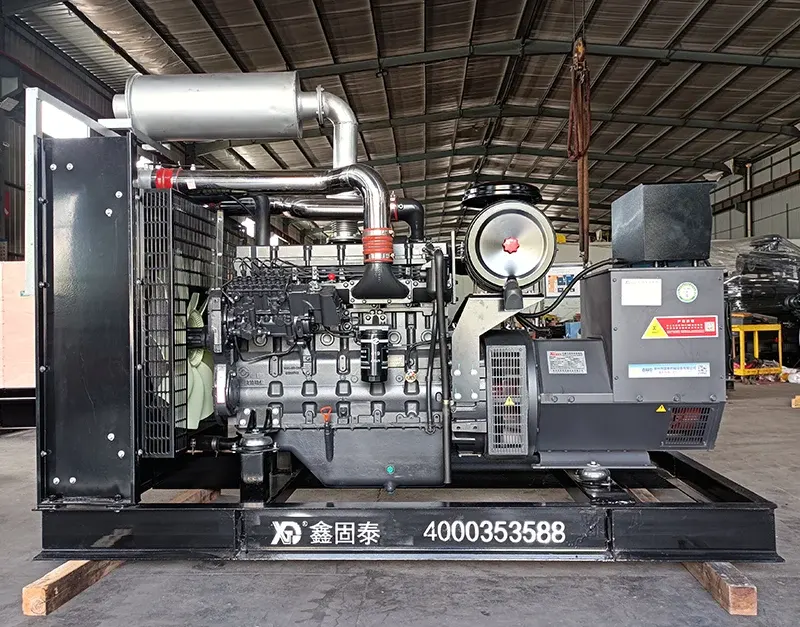

Shangchai power diesel generator set 1000KW

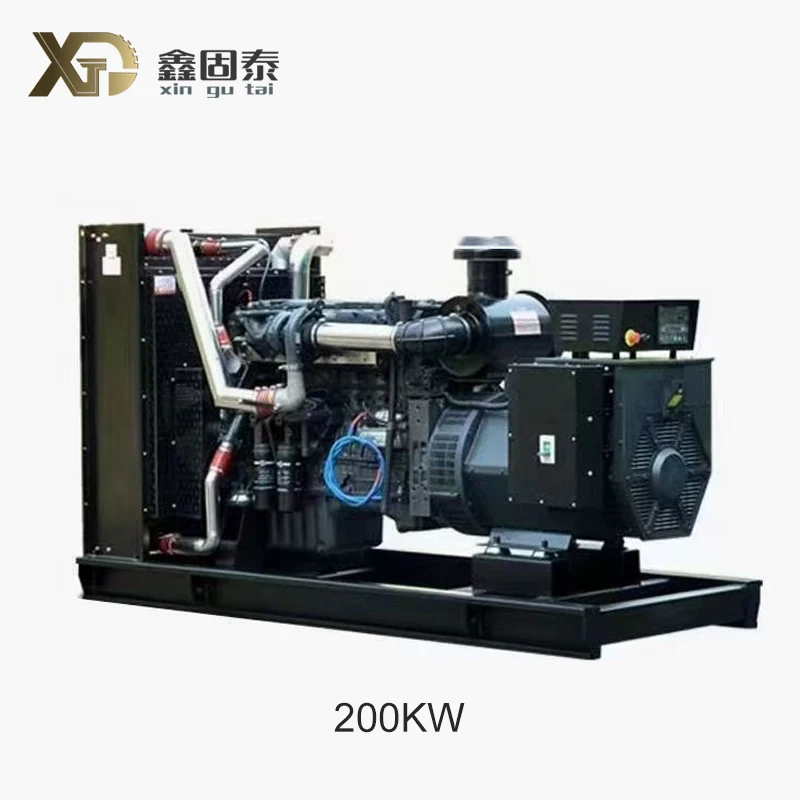

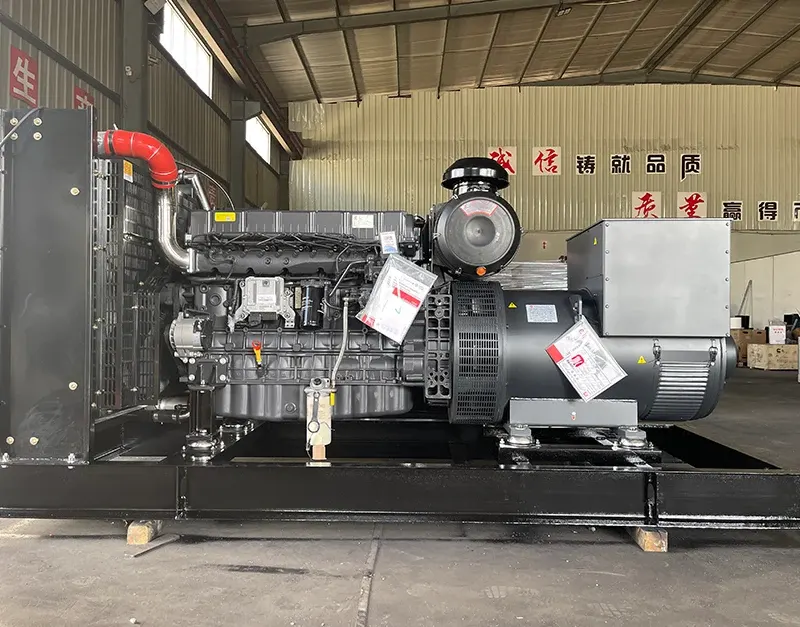

Shangchai power diesel generator set 200KW

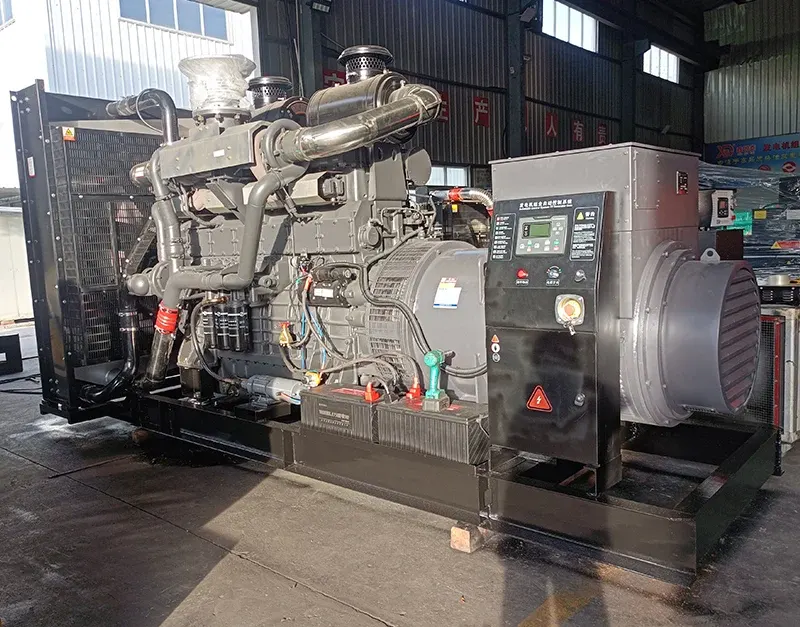

Shangchai power diesel generator set 400KW

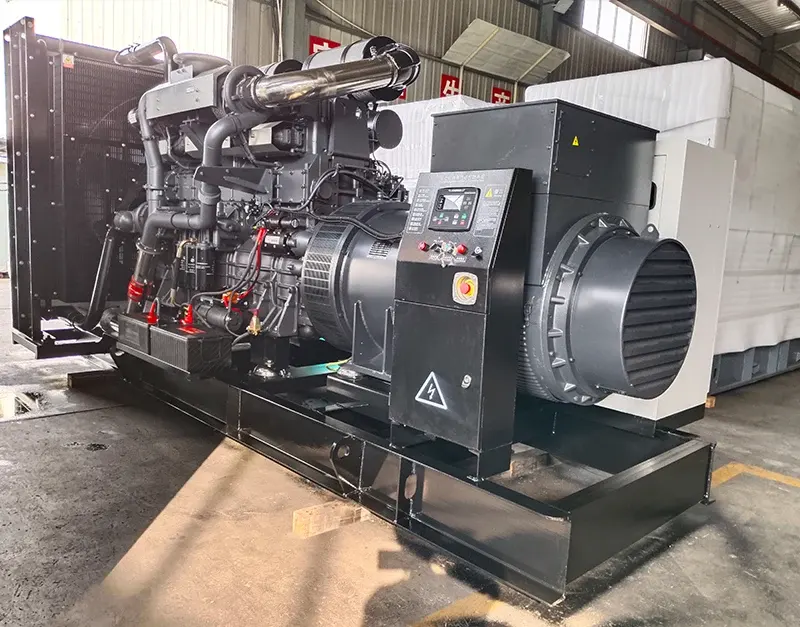

Shangchai power diesel generator set 800KW

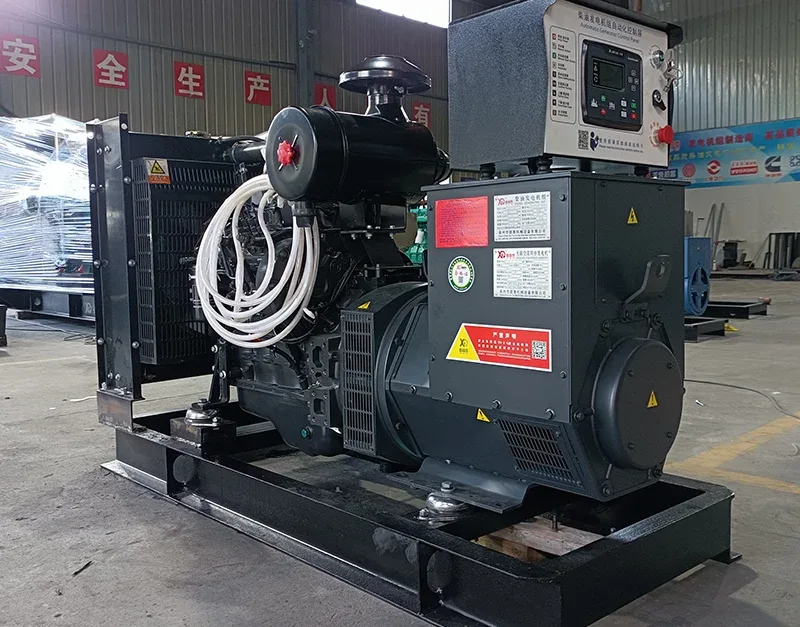

Shangchai power diesel generator set 30KW
| 1、 Technical parameters of generator set | |||
| Model | XGT-30 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤1% |
| Electric system | three-phase four-wire system | Volatility rate | ≤1% |
| Rated current | 54A | Reference weight | 770Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
1600*890*1200(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade |
(Standard)
0 # light diesel oil (regular) Warm) |
Noise (LP7M) | ≤75dB(A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Shangchai Power | manufacturer |
Shanghai
New Power Automotive Technology Co., Ltd company |
| output power | 35KW | Model | 4ZT3.2-G21 |
| Number of cylinders | 4 | Compression ratio | 18:1 |
| Piston aperture/piston stroke | 98mm/105mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤6.29g/kw.h | Starting power supply | DC 24V |
| Exhaust volume | 3.2L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke |
Emission
limits for pollutants price |
Non Road Country II |
| 3、 Technical parameters of generator | |||
| Brand | Xingutai | Model | XGTW-30-4(30KW) |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |
|
·3 System functions: The unit is equipped with an
LCD display screen, a self starting and automatic shutdown function, an
intelligent control system, and features low oil pressure, high water
temperature, and overspeed Protection functions for low speed, overload, and low electric storage voltage. |
|||
Shangchai power diesel generator set 80kw
| 1、 Technical parameters of generator set | |||
| Model | XGT-80 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤1% |
| Electric system | three-phase four-wire system | Volatility rate | ≤1% |
| Rated current | 144A | Reference weight | 1150Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
2000*830*1300(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade | (Standard) 0 # light diesel oil (at room temperature) | Noise (LP7M) | Normal configuration ≤ 117dB (A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Shanghai (Shangchai Power) | manufacturer |
Shanghai
New Power Automotive Technology Co., Ltd company |
| output power | 105KW | Model | SC4H140D2 |
| Number of cylinders | 4 | Compression ratio | 17.3:1 |
| Piston aperture/piston stroke | 105mm/124mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤195g/kw.h | Starting power supply | DC 24V |
| displacement | 4.3L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke |
Emission
limits for pollutants price |
Non Road Country II |
| 3、 Technical parameters of generator | |||
| brand | Xingutai | model | XGTW-80-4(80KW) |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |
