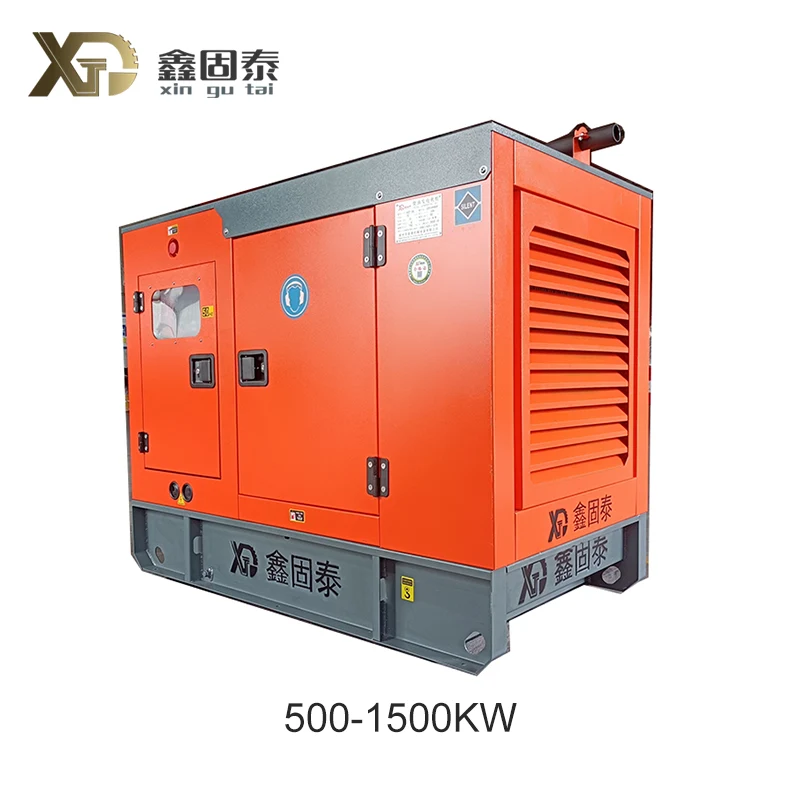

Shangchai Power Silent Diesel Generator Set
Gutai Machinery is a leading China shangchai power silent diesel generator set manufacturer. Shangchai power silent diesel generator set is suitable for various occasions such as factories, field projects, and construction.
Gutai Machinery is China manufacturer and supplier who mainly produces shangchai power silent diesel generator set with many years of experience. Shangchai power silent diesel generator set is an efficient, environmentally friendly and low-noise power generation equipment suitable for a variety of occasions, such as factories, field projects, construction, etc. The design of Shangchai power silent diesel generator set focuses on reducing noise and improving reliability. Shangchai power silent diesel generator set adopts an integral cylinder head, a rear gear chamber, a flexible connection, and a modular design. These designs make the unit small in size, light in weight, and the vibration and noise control industry leading. Silent diesel generator sets are usually equipped with a detachable noise-reducing and rainproof box, and the internal multi-layer barrier impedance mismatched silencer structure and a built-in large impedance silencer are used to further reduce the noise during operation.
Daily maintenance and maintenance of Shangchai power silent diesel generator set:
In order to ensure the long-term and stable operation of Shangchai power silent diesel generator sets, regular maintenance and maintenance are essential. This includes checking the working status of key components such as the fuel system, lubrication system, and cooling system, replacing worn parts and consumables in a timely manner, and performing necessary cleaning and debugging work. Some high-end models of generator sets will also be equipped with remote monitoring and diagnostic systems, which are convenient for users to understand the operating status of the unit in real time and perform remote maintenance.

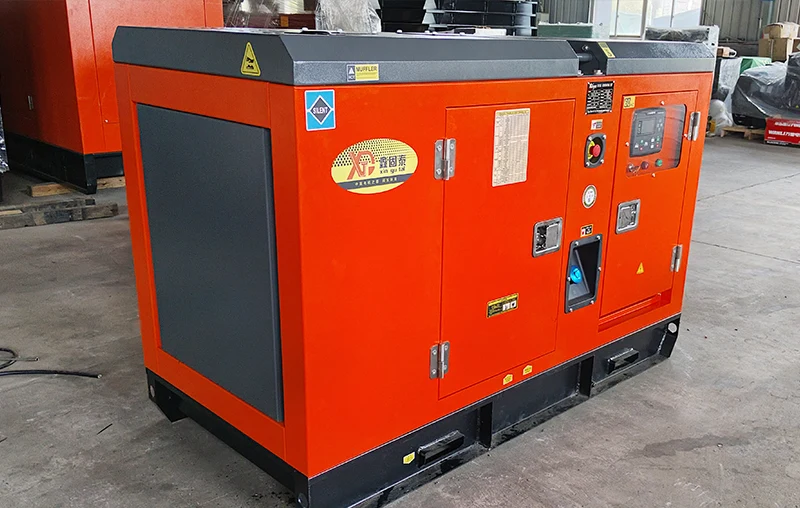

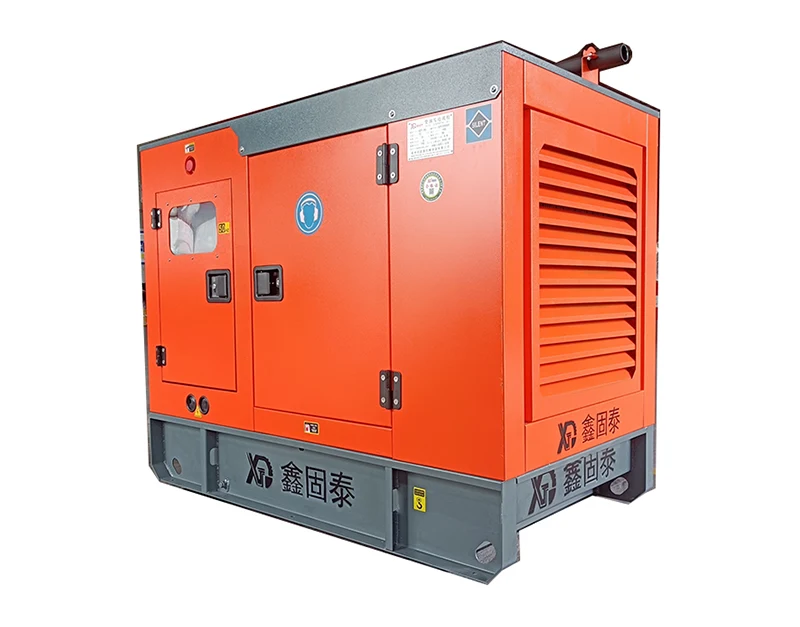

Shangchai power silent diesel generator set 30KW

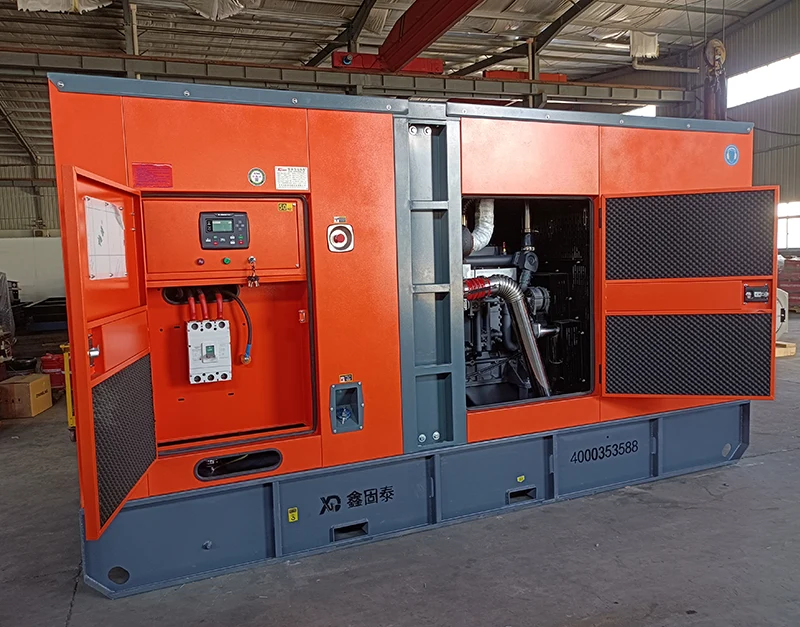

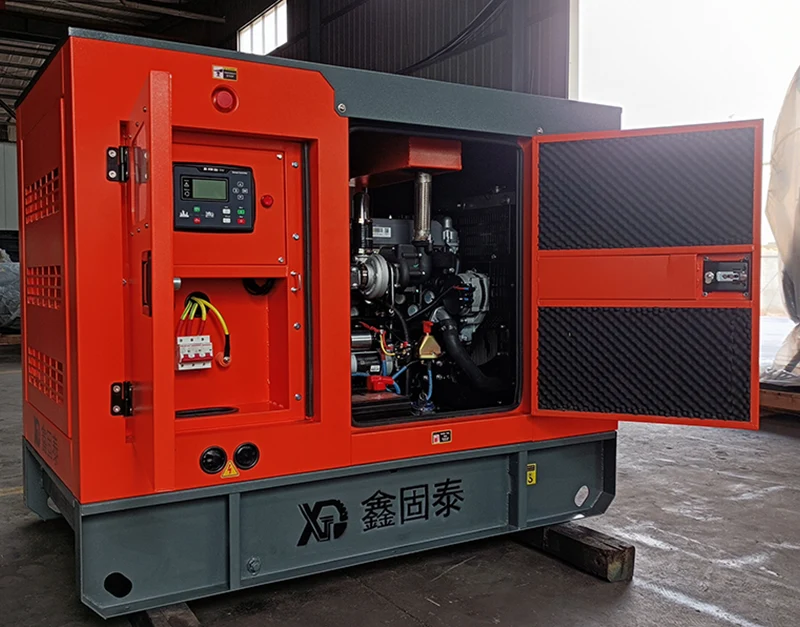

Shangchai power silent diesel generator set 250KW

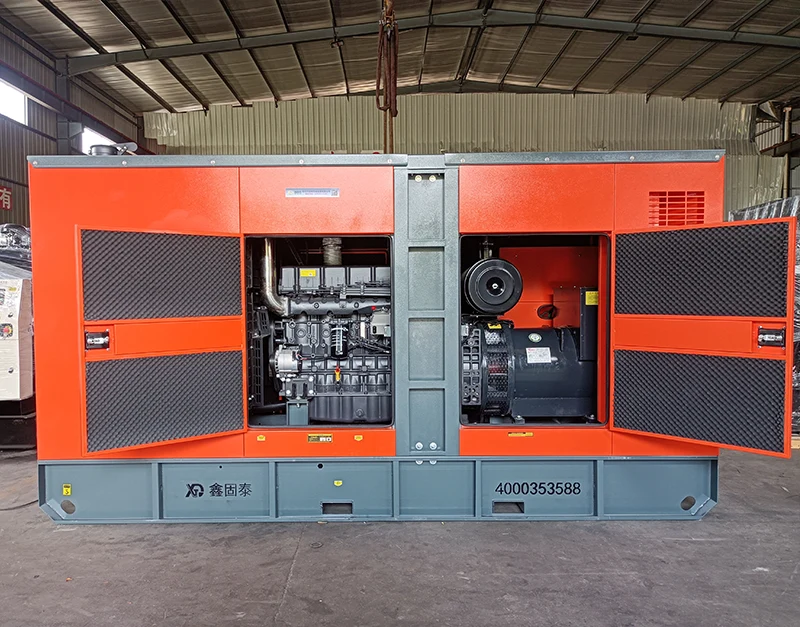

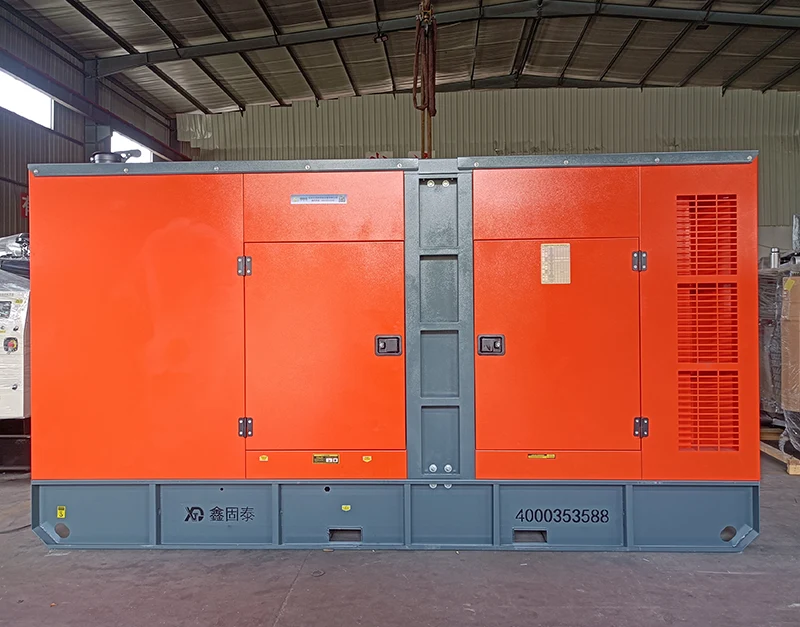

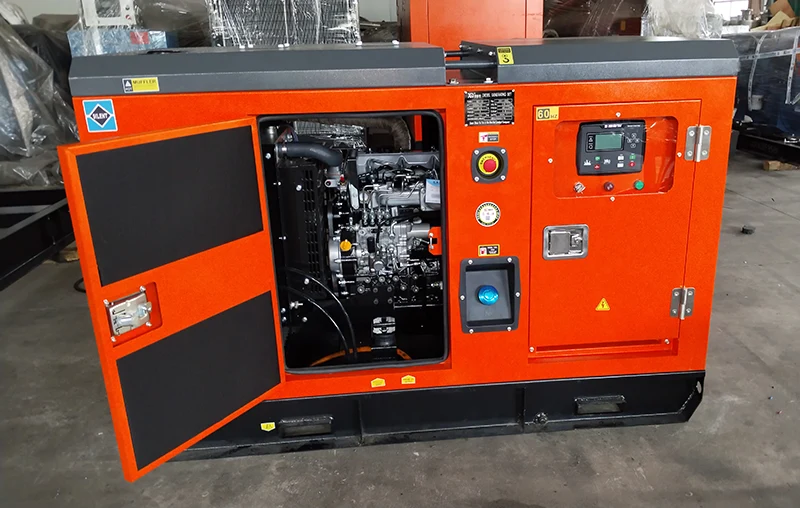

Shangchai power silent diesel generator set 320KW

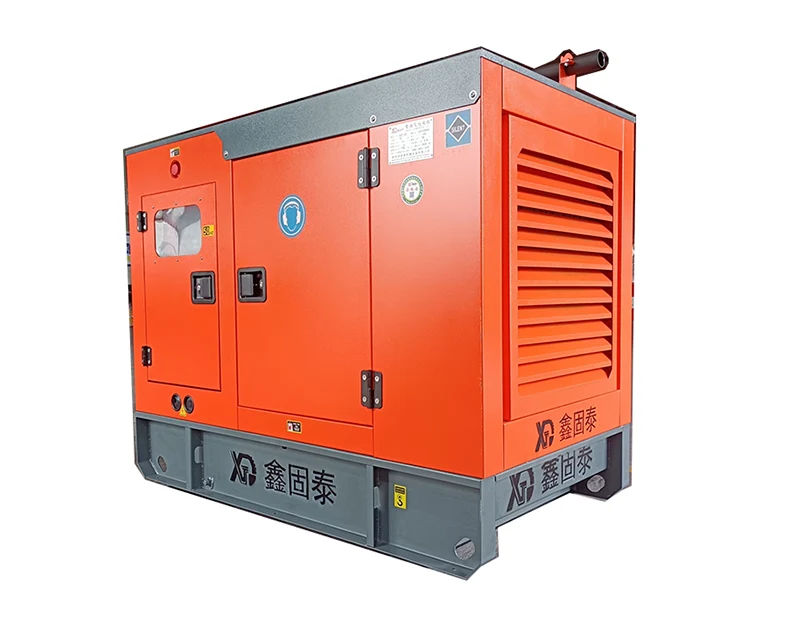

Shangchai power silent diesel generator set 20KW

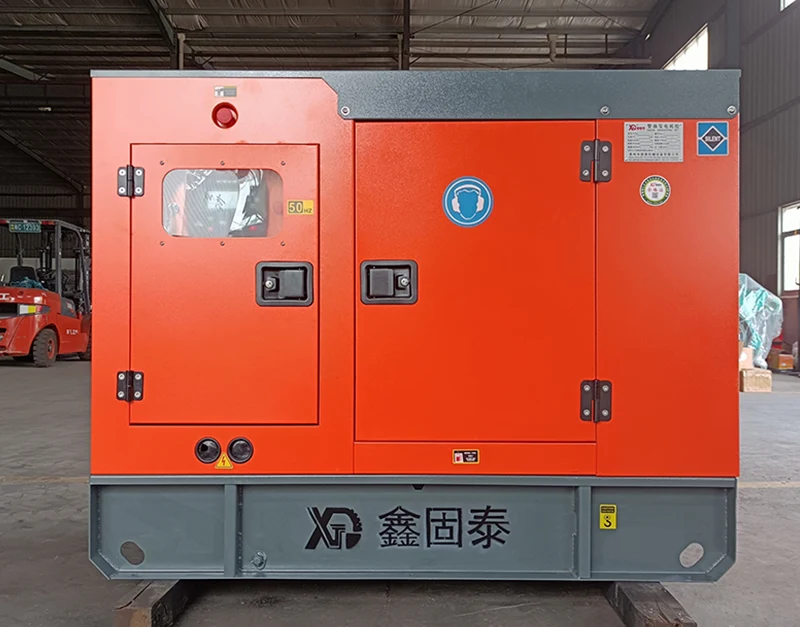

Shangchai power silent diesel generator set 30KW
| 1、 Technical parameters of generator set | |||
| Model | XGT-30 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤ 1% |
| Electric system | three-phase four-wire system | Volatility rate | ≤1% |
| Rated current | 54A | Reference weight | 890Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
1750*950*1260(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade |
(Standard)
0 # light diesel oil (regular) Warm) |
Noise (LP7M) | ≤75dB(A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Shangchai Power | manufacturer | Shanghai Diesel Engine Power Co., Ltd |
| output power | 35KW | Model | 4ZT3.2-G21 |
| Number of cylinders | 4 | Compression ratio | 18:1 |
| Piston aperture/piston stroke | 98mm/105mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤6.29g/kw.h | Starting power supply | DC 24V |
| Exhaust volume | 3.2L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke |
Emission
limits for pollutants price |
Non Road Country II |
| 3、 Technical parameters of generator | |||
| Brand | Xingutai | Model | XGTW-30-4(30KW) |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |
