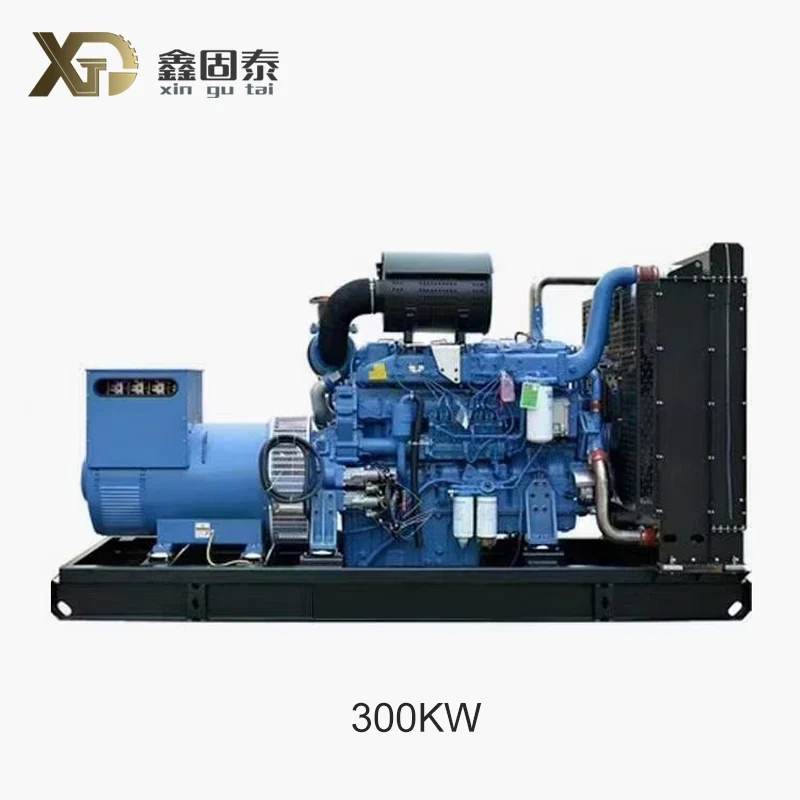

Yuchai Diesel Generator Set
Gutai Machinery is a leading China yuchai diesel generator set manufacturer. Yuchai diesel generator sets have low vibration and noise, and can provide remote computer control according to different user needs.
Gutai Machinery is a professional leader China yuchai diesel generator set manufacturer with high quality and reasonable price. Yuchai diesel generator set is produced by Guangxi Yuchai Machinery Co., Ltd. Yuchai diesel generator set adopts advanced fuel injection technology, which can achieve high-efficiency and low-fuel consumption energy conversion, low fuel consumption rate and lubricant consumption.
Yuchai diesel generator set technical features and performance
1. Control system: It has a digital control system, which is highly intelligent. It can provide products with different functions such as remote computer remote control, group control, telemetry, automatic paralleling, and automatic fault protection according to different needs of users.
2. Power output: It has strong power and can output the nameplate rated power at an altitude of less than 1000m, and can output 110% overload power of the rated power in less than 1 hour.
Fuel and lubricant consumption: The fuel consumption rate and lubricant consumption rate are far better than similar domestic products.
3.Stability: small vibration, low noise, high reliability, low emissions, in line with international environmental protection requirements, and product quality fully meets or exceeds relevant international standards.

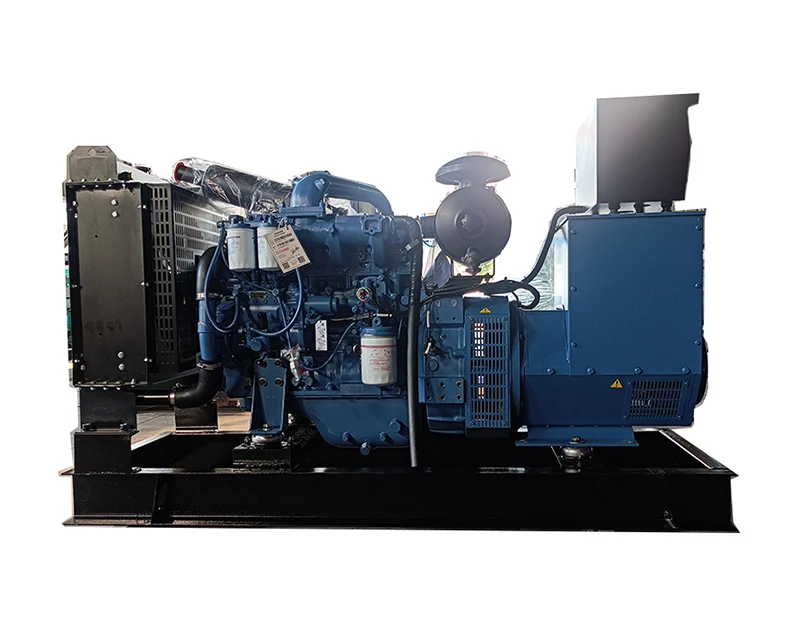

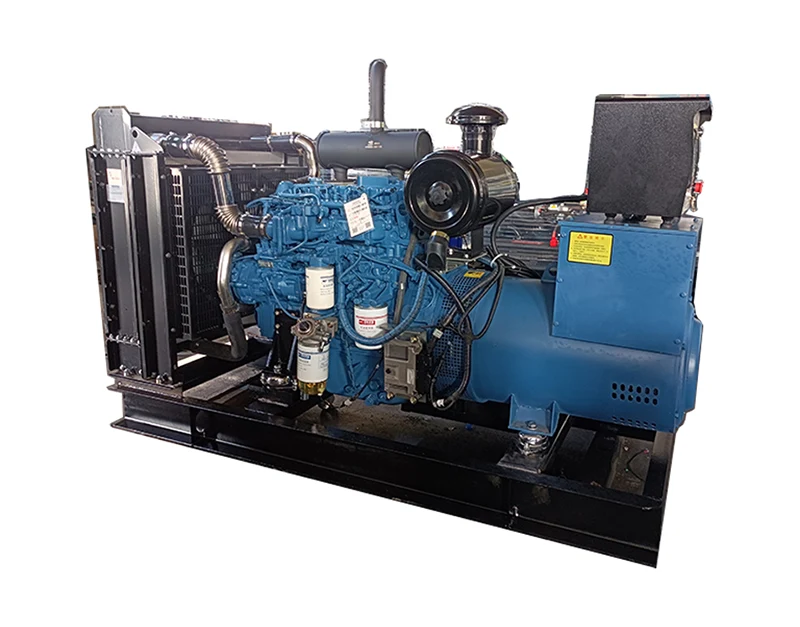

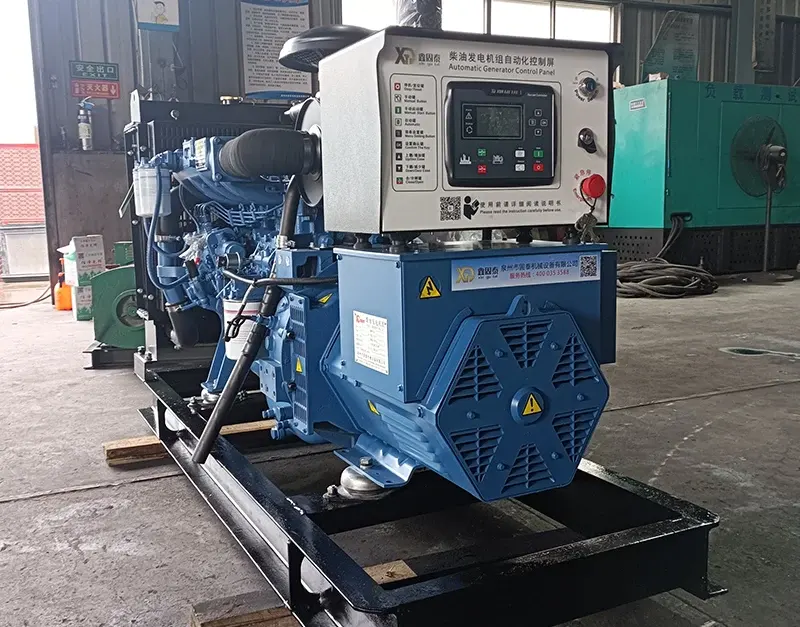

Yuchai diesel generator set 30KW
| 1、 Technical parameters of generator set | ||||||
| Model | XGT-30 | output power | 30KW | |||
| rated voltage | 400V/230V | Steady state frequency regulation | ≤1% | |||
| Rated frequency | 50HZ | Frequency stabilization time | ≤3S | |||
| Electric system | three-phase four-wire system | Transient frequency adjustment rate | ≤1% | |||
| Rated current | 54A | Volatility rate | ≤1% | |||
| Power factor | 0.8 (lag) | Weight | 950Kg | |||
| Steady-state voltage regulation rate | ≤±1% | Rotational speed | 1500r/min | |||
| Transient voltage regulation rate | -15%~+18% |
Reference external dimensions (Length * Width * Height) |
1950*900*1400(mm) | |||
| Voltage recovery time | ≤1S | Cooling method | Closed water cooling | |||
| Fuel grade |
(Standard) o # light diesel oil (At room temperature) |
Noise (LP7M) | ≤117dB(A) | |||
| 2、 Technical parameters of diesel engine | ||||||
| Origin (brand) | Guangxi (Yuchai) | manufacturer | Yuchai Machinery Co., Ltd | |||
| output power | 44KW | Model | YC4D60-D21 | |||
| Number of cylinders | 4 | Compression ratio | 16.7:1 | |||
| Piston aperture/piston stroke | 108mm/115mm | Start mode | Electric start | |||
| oil consumption | ≤205g/kw.h | Starting power supply | DC 24V | |||
| displacement | 4.21L | Speed Control | electronic speed control | |||
| Applicable ambient temperature | -10℃~40℃ | Air intake system | Turbocharged air cooling | |||
| Diesel engine type | Inline 4-cylinder, 4-stroke | Applicable altitude | ≤2200m | |||
| 3、 Technical parameters of generator | ||||||
| brand | Fujian Xingutai | model | XGTW-30-4(30KW) | |||
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 | |||
| Voltage regulation system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S | |||
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes | |||
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system | |||

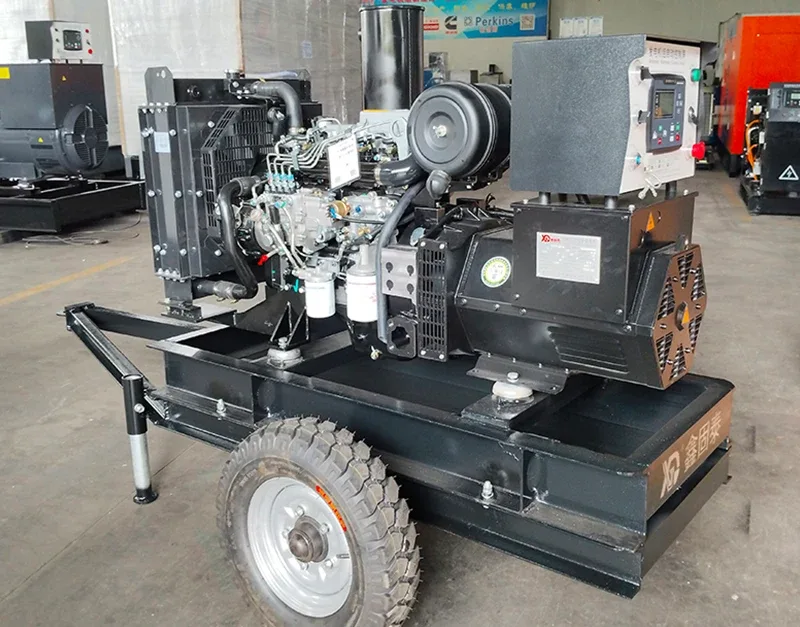

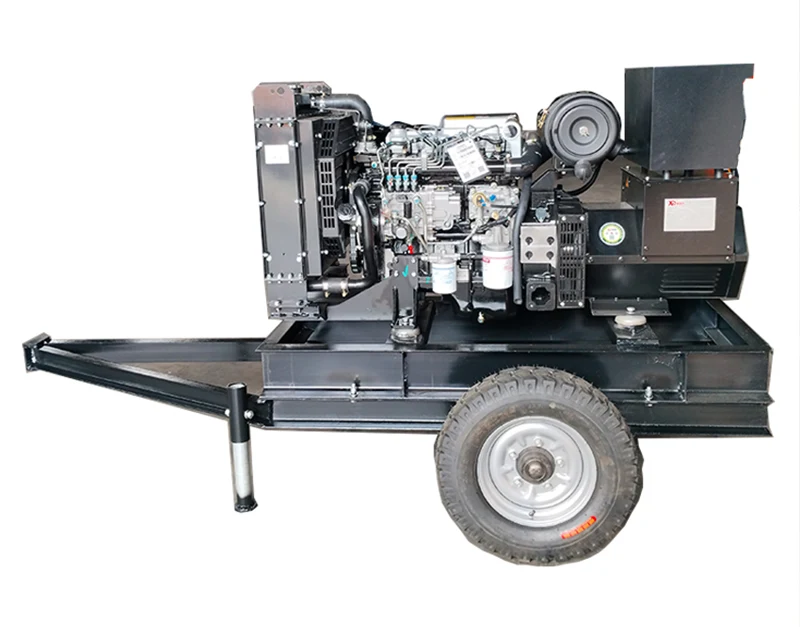

Yuchai diesel generator set 30KW(Yuchai with 2 wheel trailer)
| 1、 Technical parameters of generator set | |||
| Model | XGT-30 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤1% |
| Electric system | three-phase four-wire system | Volatility rate | ≤1% |
| Rated current | 54A | Reference weight | 1400Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
2650*1250*1550(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade | (Standard) 0 # light diesel oil (at room temperature) | Noise (LP7M) | Normal configuration ≤ 117dB (A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Guangxi (Yuchai) | manufacturer | Guangxi Yuchai Ship Electric Power Co., Ltd |
| output power | 42KW | Model | YC4V55Z-D20 |
| Number of cylinders | 4 | Compression ratio | 17.5:1 |
| Piston aperture/piston stroke | 89mm/100mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤205g/kw.h | Starting power supply | DC 24V |
| Exhaust volume | 2.5L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke | Emission limits for pollutants | Non Road Country II |
| 3、 Technical parameters of generator | |||
| Brand | Xingutai | Model | XGTW-30-4 |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |

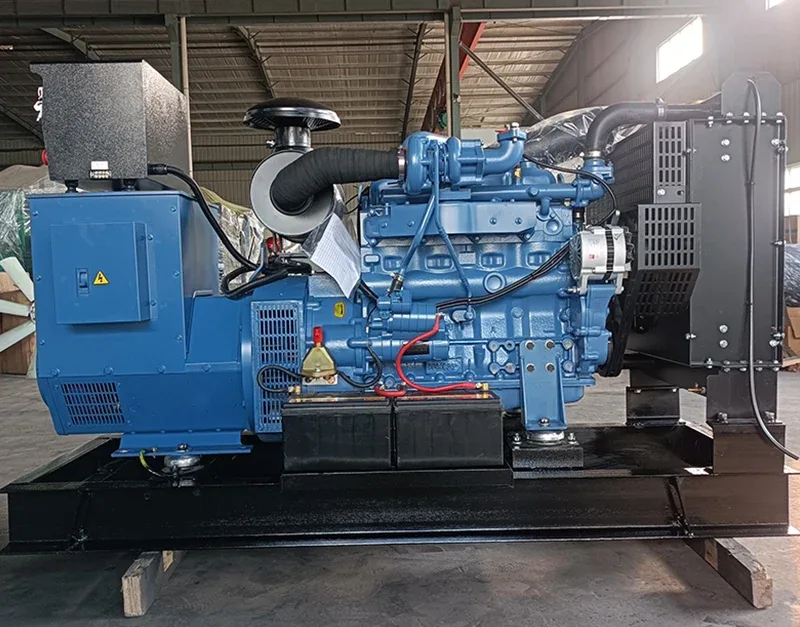

Yuchai diesel generator set 50KW
| Model | XGT-50 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | < 1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤1% |
| Electric system | three-phase four-wire system | Volatility rate | ≤1% |
| Rated current | 90A | Reference weight | 950Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
1950*900*1320(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Closed water cooling |
| Fuel grade |
(Standard)
0 # light diesel oil (At room temperature) |
Noise (LP7M) | Normal configuration ≤ 117dB (A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Guangxi (Yuchai) | manufacturer | Yuchai Machinery Co., Ltd |
| output power | 66KW | Model | YC4D90Z-D21 |
| Number of cylinders | 4 | Compression ratio | 16.0:1 |
| Piston aperture/piston stroke | 108mm/115mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤230g/kw.h | Starting power supply | DC 24V |
| Exhaust volume | 4.21L | Speed Control | electronic speed control |
| Applicable ambient temperature | -10℃~40℃ | Air intake system | turbocharging |
| Diesel engine type | Straight 4-cylinder, 4-stroke | Emission limits for pollutants | Non road country Phase II |
| 3、 Technical parameters of generator | |||
| Brand | Xingutai | Model | XGTW-50-4(50KW) |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |

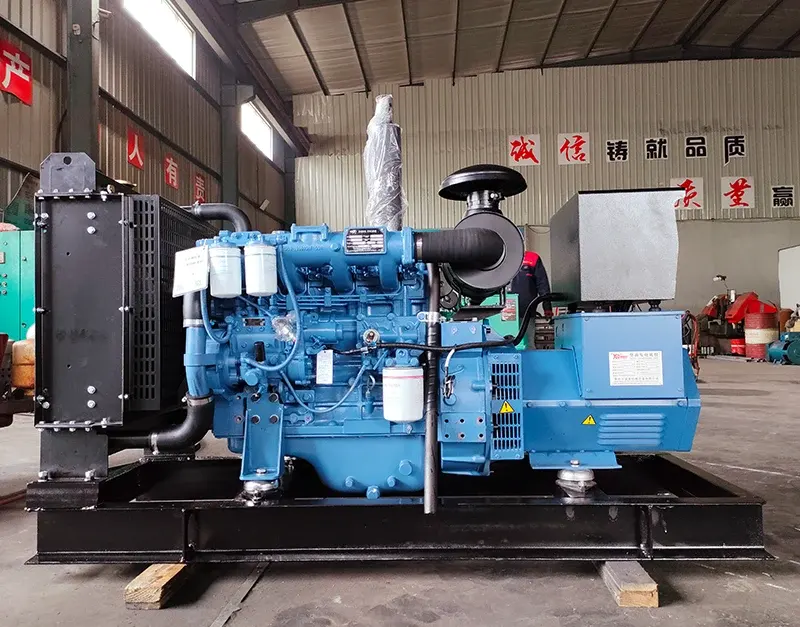

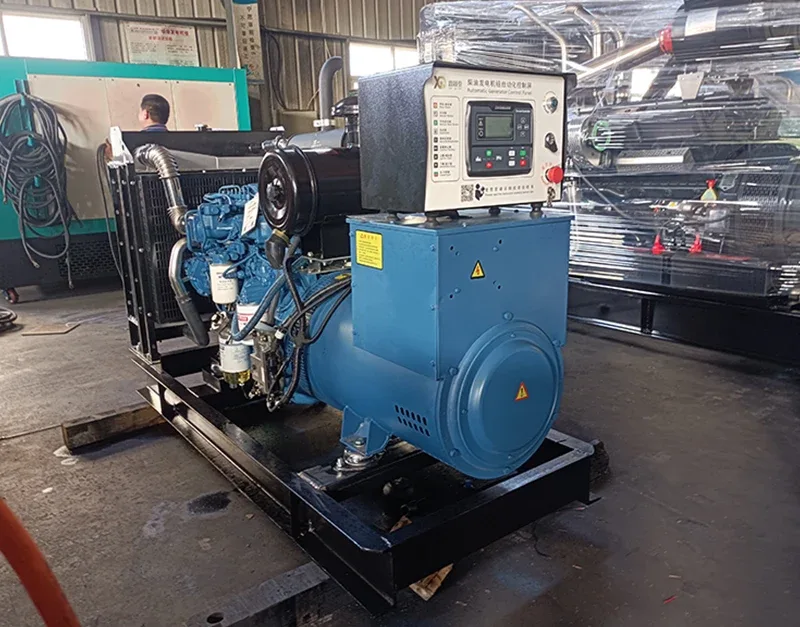

Yuchai diesel generator set 80KW
Detailed technical parameters of 80KW diesel generator set
| 1、 Technical parameters of generator set | |||
| Model | XGT-80 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤1% |
| Electric system | three-phase four-wire system | Volatility rate | ≤1% |
| Rated current | 144A | Reference weight | 1150Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
2000*830*1300(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade | (Standard) 0 # light diesel oil (at room temperature) | Noise (LP7M) | Normal configuration ≤ 117dB (A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Shanghai (Shangchai Power) | manufacturer |
Shanghai
New Power Automotive Technology Co., Ltd company |
| output power | 105KW | Model | SC4H140D2 |
| Number of cylinders | 4 | Compression ratio | 17.3:1 |
| Piston aperture/piston stroke | 105mm/124mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤195g/kw.h | Starting power supply | DC 24V |
| displacement | 4.3L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke |
Emission
limits for pollutants price |
Non Road Country II |
| 3、 Technical parameters of generator | |||
| brand | Xingutai | model | XGTW-80-4(80KW) |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |
| 1、 Technical parameters of generator set | |||
| Model | XGT-80 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤ 1% |
| Electric system | three-phase four-wire system | Volatility | ≤1% |
| Rated current | 144A | Reference weight | 1100Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
2080*800*1100(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade | (Standard) 0 # light diesel oil (at room temperature) | Noise (LP7M) | Normal configuration ≤ 117dB (A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Guangxi (Yuchai) | manufacturer | Yuchai Machinery Co., Ltd |
| output power | 105KW | Model | YC4A140L-D25 |
| Number of cylinders | 4 | Compression ratio | 17.0:1 |
| Piston aperture/piston stroke | 108mm/132mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤230g/kw.h | Starting power supply | DC 24V |
| displacement | 4.21L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke | Emission limits for pollutants | Non Road Country II |
| 3、 Technical parameters of generator | |||
| Brand | Xingutai | Model | STC-80 |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Voltage regulation system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |
