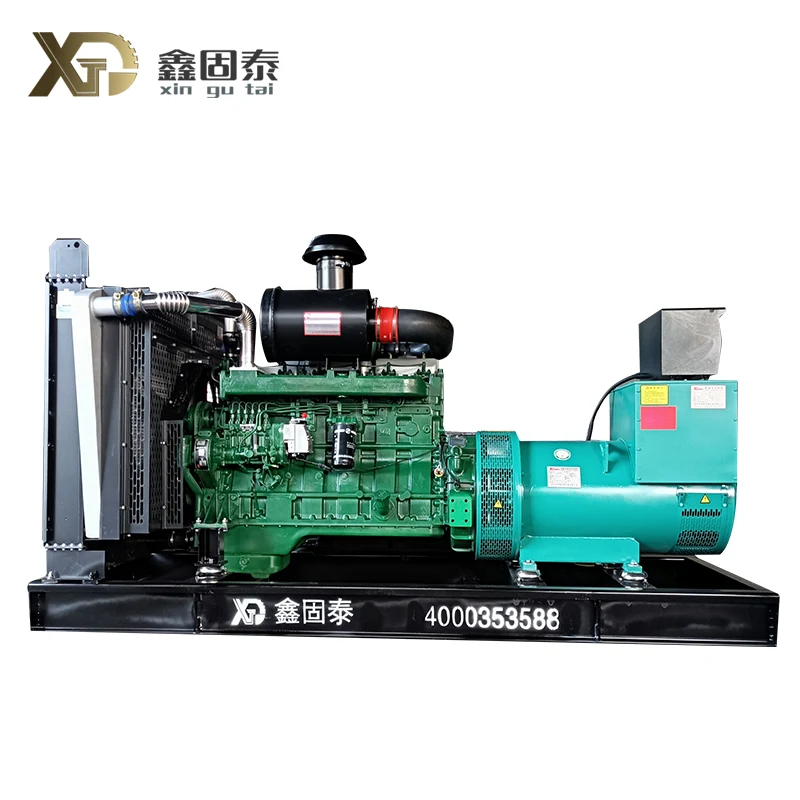

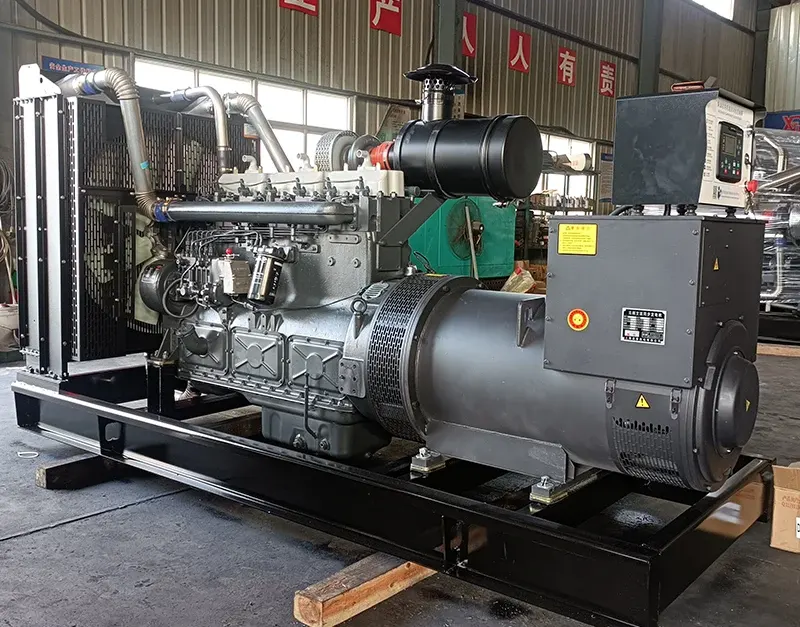

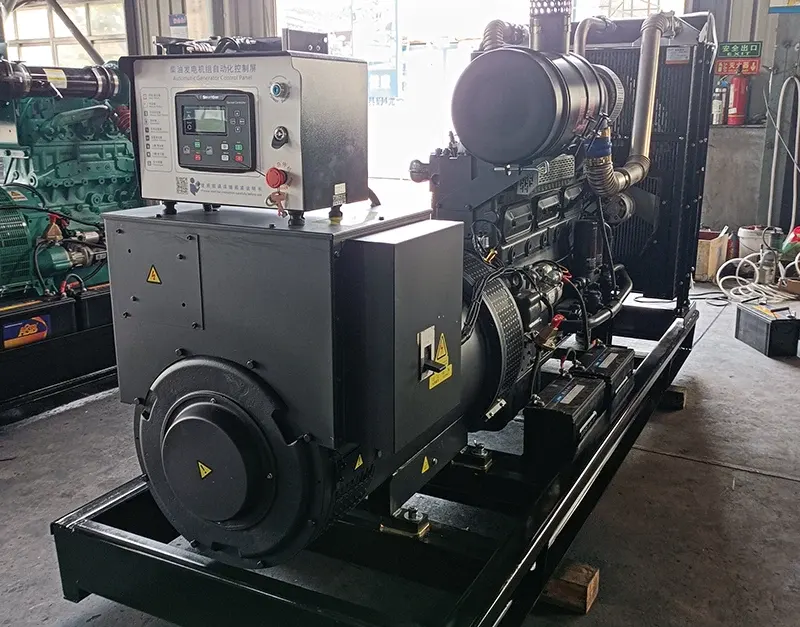

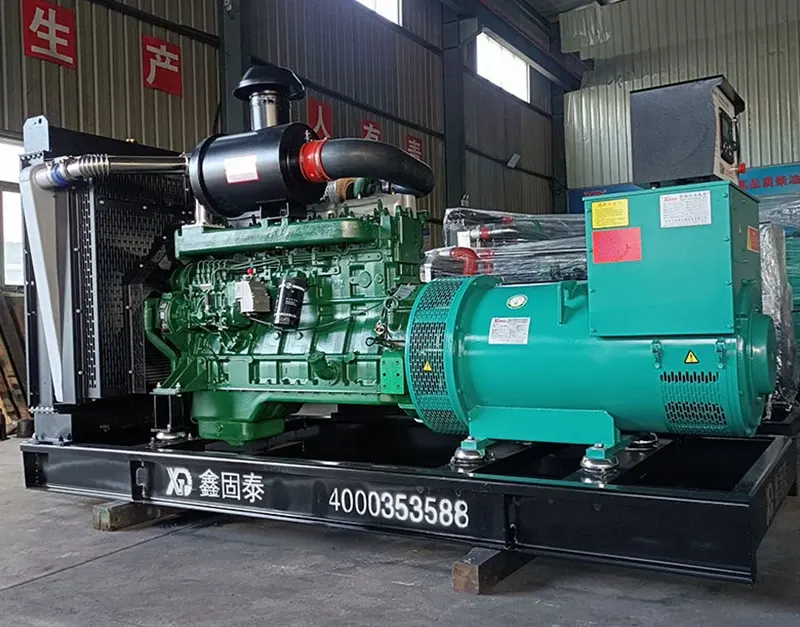

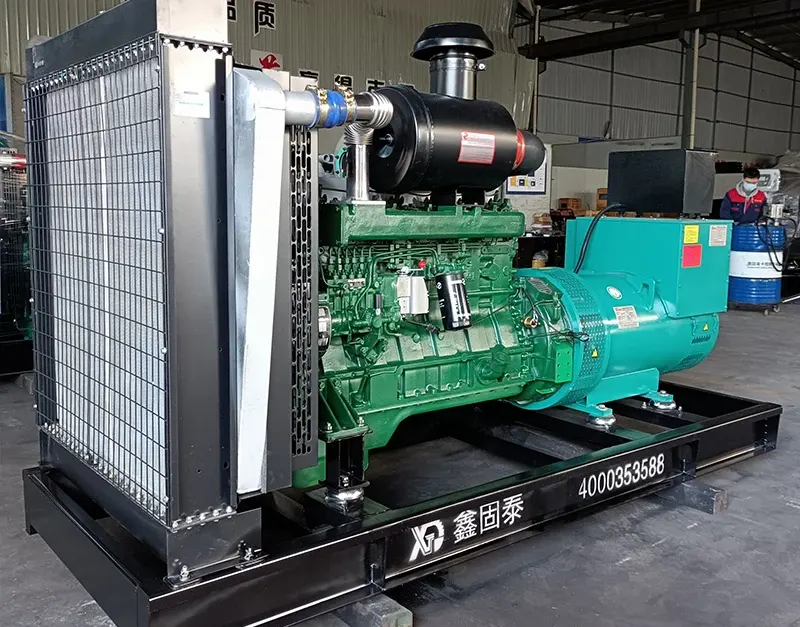

Cardechengshi Diesel Generator Set
Gutai Machinery is a professional China cardechengshi diesel generator set manufacturer and supplier. Cardechengshi diesel generator set is suitable for various occasions requiring stable power supply, including factories, hospitals, schools, shopping malls, etc.
High quality cardechengshi diesel generator set is offered by China manufacturer Gutai Machinery. Cardechengshi Diesel Generator Set is a modern diesel engine manufacturing enterprise integrating R&D and production. Its products include diesel engines, generator sets, etc. The product has the characteristics of high voltage regulation accuracy, good dynamic performance, small voltage waveform distortion, high efficiency, reliable operation, long service life and good economic performance. Cardechengshi diesel generator set is suitable for various occasions requiring stable power supply, including factories, hospitals, schools, shopping malls, etc.
Performance characteristics of Cardechengshi Diesel Generator Set:
1. Advanced technology: The product absorbs international advanced technology, has independent intellectual property rights and reliable quality.
2. High efficiency and economy: high thermal efficiency, low fuel consumption rate, and the highest effective thermal efficiency can reach 46%.
3. Compact structure: The generator set has a compact structure, few auxiliary equipment, and is easy to move.
4. Reliable power supply: It has high power supply reliability and automation function, and can realize unattended operation.
5. Quick start: It can reach full load within 1 minute in emergency, and the shutdown process is short, which is suitable for occasions with frequent start and stop.
400KW
| 1、 Technical parameters of generator set | |||||||||
| Model | XGT-400 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd | ||||||
| rated voltage | 400V/230V | Steady state frequency regulation | ≤1% | ||||||
| Rated frequency | 50HZ | Frequency stabilization time | ≤3S | ||||||
| Electric system | three-phase four-wire system | Transient frequency adjustment rate | ≤1% | ||||||
| Rated current | 720A | Volatility rate | ≤1% | ||||||
| Power factor | 0.8 (lag) | Reference weight | 2700Kg | ||||||
| Steady-state voltage regulation rate | ≤±1% | Rotational speed | 1500r/min | ||||||
| Transient voltage regulation rate | -15%~+18% |
Reference external dimensions (Length * Width * Height) |
3200*1250*1800(mm) | ||||||
| Voltage recovery time | ≤1S | Cooling method | Closed water cooling | ||||||
| Fuel grade |
(Standard) 0 # light diesel oil (At room temperature) |
Noise (LP7M) | ≤117dB(A) | ||||||
| 2、 Technical parameters of diesel engine | |||||||||
| Origin (brand) | Shanghai (Kadecheng Shi) | manufacturer | Shanghai Kadechengshi Engine Co., Ltd | ||||||
| output power | 460KW | Model | KD16H460 | ||||||
| Number of cylinders | 6 | Compression ratio | 17:1 | ||||||
| Piston aperture/piston stroke | 135mm/150mm | Start mode | Electric start | ||||||
| oil consumption | ≤205g/kw.h | Starting power supply | DC 24V | ||||||
| Exhaust volume | 15L | Speed Control | electronic speed control | ||||||
| Applicable ambient temperature | -10℃~40℃ | Air intake system | turbocharging | ||||||
| Diesel engine type | Inline 6-cylinder, 4-stroke | fuel system | Direct injection | ||||||
| 3、 Technical parameters of generator | |||||||||
| Brand | Xingutai | model | XGTW-400-4(400KW) | ||||||
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 | ||||||
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S | ||||||
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes | ||||||
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system | ||||||
