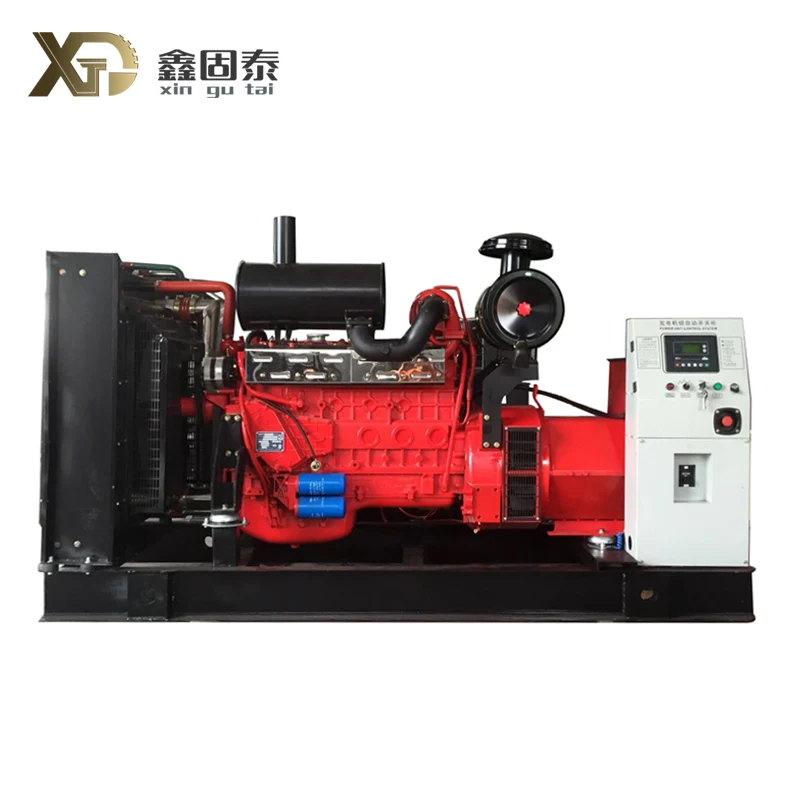

Dongfanghong Diesel Generator Set
As the professional manufacturer, Gutai Machinery would like to provide you dongfanghong diesel generator set. Dongfanghong diesel generator sets are widely used in factories, buildings, shopping malls, banks, hotels, ports, oil fields, mines, hospitals and other industries as well as highway, railway and airport construction.
Gutai Machinery is a leading China dongfanghong diesel generator set manufacturer. Dongfanghong diesel generator set is a series of diesel generator sets independently developed and designed by YTO Group. These generator sets adopt advanced European and American technologies, and after three-dimensional finite element analysis and modular integrated design, they have the characteristics of compact structure, strong power, low fuel consumption, high reliability, easy starting, and good versatility of parts. Dongfanghong diesel generator set is widely used in industries such as factories, buildings, shopping malls, banks, hotels, ports, oil fields, mines, hospitals, as well as highway, railway, airport construction and other fields. In addition, they are often used as self-contained power supply, backup power supply, alternative power supply and mobile power supply, suitable for various occasions requiring stable power supply.
Features of Dongfanghong diesel generator set:
1. The modular design makes the unit compact and easy to install and maintain.
2. The advanced technology is adopted to ensure that the unit can provide stable high power output under various working conditions.
3. The optimized design reduces fuel consumption and improves economy.
4. After strict testing and certification, it ensures that the unit can operate stably in various environments.
5. The advanced starting system is adopted, which can start quickly even in low temperature or high altitude environment. 6. The parts are designed to be universal, easy to repair and replace.
YTO (Luoyang) Diesel Engine Co., Ltd. production of "The East is Red" series of diesel engines, have been China's # 3 emissions certification standards, the EU E-mark Ⅲ emission certification standards, US EPA emission certification standards EPA3 and ensures the high altitude the condition is excellent dynamics.
Dongfanghong series diesel engine alloy steel crankshaft, connecting rod and a dry body build muscles, four-valve, turbocharged and intercooled, airway optimization mode, electronically controlled injection, exhaust gas after-treatment, noise control, a large number of cutting-edge technology is sufficient to withstand harsh conditions. Power and torque momentum indicators have been fully upgraded, passenger cars, trucks, land use marine generator sets, engineering machinery and other new power generation, it is to replace similar imported products the best choice
Main technical parameter
|
Genset Model |
Genset Power |
（Kw） Engin Power |
Engin Model |
（A） Current |
Speed r/min |
Fuel Oil consumption rate （g/kw·h） |
Compression Ratio |
（L） Displacenent |
Cylinder Q·ty |
（mm） Bore×Stroke |
（mm） outline size |
（kg） Weight |
|
XGT-30 |
24/30 |
30/33 |
YT3B2-15 |
43.2/54 |
1500 |
≤210 |
17.0:1 |
3.2 |
3-cylinder/inline |
108×125 |
1650×690×1220 |
700 |
|
XGT-33 |
30/33 |
36/38 |
YT3A2Z-15 |
54/59.4 |
1500 |
≤210 |
17.0:1 |
3.117 |
3-cylinder/inline |
105×120 |
1650×690×1220 |
750 |
|
XGT-45 |
40/45 |
45/53 |
LR4B5-15 |
72/81 |
1500 |
≤210 |
17.0:1 |
4.676 |
4-cylinder/inline |
105×125 |
1800×720×1250 |
910 |
|
XGT-50 |
50 |
60/65 |
YT4B2Z-15 |
90 |
1500 |
≤200 |
17.0:1 |
4.41 |
4-cylinder/inline |
108×120 |
1800×720×1250 |
950 |
|
XGT-55 |
50/55 |
62/68 |
LR4B3Z-15 |
90/99 |
1500 |
≤205 |
17.0:1 |
4.58 |
4-cylinder/inline |
108×125 |
2050×950×1580 |
1050 |
|
XGT-75 |
78 |
86/95 |
LR4M3L-15 |
135 |
1500 |
≤202 |
17.0:1 |
4.75 |
4-cylinder/inline |
110×125 |
2050×950×1600 |
1150 |
|
XGT-100 |
85/100 |
90/103 |
LR6A3Z-15 |
144/180 |
1500 |
≤205 |
17.0:1 |
6.49 |
6-cylinder/inline |
105×125 |
2350×950×1600 |
1600 |
|
XGT-100 |
100 |
110/125 |
LR6A3L-15 |
180 |
1500 |
≤202 |
17.0:1 |
6.494 |
6-cylinder/inline |
105×125 |
2350×950×1600 |
1750 |
|
XGT-120 |
120 |
120/134 |
LR6A3L-15 |
216 |
1500 |
≤202 |
17.0:1 |
6.494 |
6-cylinder/inline |
105×125 |
2500×950×1600 |
1850 |
|
XGT-150 |
130/150 |
138/159 |
LR6B3L-15 |
234/270 |
1500 |
≤202 |
17.0:1 |
6.87 |
6-cylinder/inline |
108×125 |
2500×950×1650 |
1850 |
|
XGT-150 |
150 |
145/165 |
LR6M3L-15 |
270 |
1500 |
≤202 |
17.0:1 |
7.127 |
6-cylinder/inline |
110×125 |
2500×950×1650 |
1850 |
|
XGT-200 |
180/200 |
186/213 |
YM6H4L-15 |
324/360 |
1500 |
≤196 |
17.0:1 |
8.822 |
6-cylinder/inline |
120×130 |
2850×1170×1750 |
2050 |
|
XGT-200 |
200 |
206/227 |
YM6H4LF-15 |
360 |
1500 |
≤196 |
17.0:1 |
8.822 |
6-cylinder/inline |
120×130 |
2850×1170×1750 |
2150 |
|
XGT-250 |
220/250 |
220/258 |
YM6S4L-15 |
396/450 |
1500 |
≤196 |
17.0:1 |
9.726 |
6-cylinder/inline |
126×130 |
3000×1170×1800 |
2250 |
|
XGT-300 |
250/300 |
255/308 |
YM6S4LF-15 |
450/540 |
1500 |
≤196 |
17.0:1 |
9.726 |
6-cylinder/inline |
126×130 |
3000×1170×1800 |
2600 |
|
XGT-300 |
280/300 |
290/320 |
YM6S9L-15 |
504/540 |
1500 |
≤196 |
17.0:1 |
11.596 |
6-cylinder/inline |
126×130 |
3000×1180×1850 |
2750 |
|
XGT-350 |
300/350 |
310/352 |
YM6S9L-15 |
540/630 |
1500 |
≤196 |
17.0:1 |
11.596 |
6-cylinder/inline |
126×130 |
3000×1180×1850 |
2850 |
|
XGT-350 |
350 |
350/405 |
YM6S9LF-15 |
630 |
1500 |
≤196 |
17.0:1 |
12.596 |
6-cylinder/inline |
126×155 |
3200×1200×1900 |
2950 |
|
XGT-400 |
360/400 |
370/430 |
YM6S9LF-DA |
648/720 |
1500 |
≤196 |
17.0:1 |
12.596 |
6-cylinder/inline |
126×155 |
3200×1200×1900 |
3100 |
Dongfanghong diesel generator set 100KW
| 1、 Technical parameters of generator set | |||||||
| Model | XGT-100 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd | ||||
| rated voltage | 400V/230V | Steady state frequency regulation | ≤1% | ||||
| Rated frequency | 50HZ | Frequency stabilization time | ≤3S | ||||
| Electric system | three-phase four-wire system | Transient frequency adjustment rate | ≤1% | ||||
| Rated current | 180A | Volatility rate | ≤1% | ||||
| Power factor | 0.8 (lag) | Weight | 1750Kg | ||||
| Steady-state voltage regulation rate | ≤±1% | Rotational speed | 1500r/min | ||||
| Transient voltage regulation rate | -15%~+18% |
Dimensions (length * width)* High) |
2500*1000*1600(mm) | ||||
| Voltage recovery time | ≤1S | Cooling method | Closed water cooling | ||||
| Fuel grade |
(Standard) 0 # light diesel Oil (at room temperature) |
Noise (LP7M) | ≤117dB(A) | ||||
| 2、 Technical parameters of diesel engine | |||||||
| Origin (brand) | Luoyang (Eastern Red) | manufacturer |
Yituo
(Luoyang) Diesel Engine Co., Ltd company |
||||
| output power | 125KW | Model | LR6A3L-15 | ||||
| Number of cylinders | 6 | Compression ratio | 17.0:1 | ||||
| Piston aperture/piston stroke | 105mm/125mm | Start mode | Electric start | ||||
| oil consumption | ≤202g/kw.h | Starting power supply | DC 24V | ||||
| Exhaust volume | 6.494L | Speed Control | electronic speed control | ||||
| Applicable ambient temperature | -10℃~40℃ | Air intake system | Turbocharged air cooling | ||||
| Diesel engine type | Inline 6-cylinder, 4-stroke | Emission limits for pollutants | Non road country Phase II | ||||
| 3、 Technical parameters of generator | |||||||
| Brand | Fujian Xingutai | Model | XGTW-100-4(100KW) | ||||
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 | ||||
| Voltage regulation system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S | ||||
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes | ||||
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system | ||||
Dongfanghong diesel generator set 30KW
| 1、 Technical parameters of generator set | |||||||||
| Model | XGT-30 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd | ||||||
| rated voltage | 400V/230V | Steady state frequency regulation | ≤1% | ||||||
| Rated frequency | 50HZ | Frequency stabilization time | ≤3S | ||||||
| Electric system | three-phase four-wire system | Transient frequency adjustment rate | ≤1% | ||||||
| Rated current | 54A | Volatility rate | ≤1% | ||||||
| Power factor | 0.8 (lag) | Reference weight | 910Kg | ||||||
| Steady-state voltage regulation rate | ≤±1% | Rotational speed | 1500r/min | ||||||
| Transient voltage regulation rate | -15%~+18% |
Reference external dimensions (Length * Width * Height) |
1750*700*1150(mm) | ||||||
| Voltage recovery time | ≤1S | Cooling method | Closed water cooling | ||||||
| Fuel grade |
(Standard) 0 # light diesel oil (At room temperature) |
Noise (LP7M) | ≤117dB(A) | ||||||
| 2、 Technical parameters of diesel engine | |||||||||
| Origin (brand) | Yituo (Luoyang) | manufacturer | Yituo (Luoyang) Diesel Engine Co., Ltd | ||||||
| output power | 39KW | Model | YT4A2-15 | ||||||
| Number of cylinders | 4 | Compression ratio | 17:1 | ||||||
| Piston aperture/piston stroke | 105mm/120mm | Start mode | Electric start | ||||||
| oil consumption | ≤210g/kw.h | Starting power supply | DC 24V | ||||||
| Exhaust volume | 3.117L | Speed Control | electronic speed control | ||||||
| Applicable ambient temperature | -10℃~40℃ | Air intake system | Turbocharged air cooling | ||||||
| Diesel engine type | 4-cylinder inline | fuel system | PT pump direct injection | ||||||
| 3、 Technical parameters of generator | |||||||||
| model | STC-30 | ||||||||
| Excitation method | Mutual excitation and self cooling | protection grade | IP22 | ||||||
| Pressure regulating system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S | ||||||
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes | ||||||
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system | ||||||
Dongfanghong diesel generator set 80KW
| 1、 Technical parameters of generator set | |||
| Model | XGT-80 | manufacturer | Quanzhou Gutai Machinery Equipment Co., Ltd |
| Voltage recovery time | ≤1S | Steady state frequency regulation | ≤1% |
| rated voltage | 400V/230V | Frequency stabilization time | ≤3S |
| Rated frequency | 50HZ | Transient frequency adjustment rate | ≤ 1% |
| Electric system | three-phase four-wire system | Volatility | ≤1% |
| Rated current | 144A | Reference weight | 1250Kg |
| Power factor | 0.8 (lag) | Rotational speed | 1500r/min |
| Steady-state voltage regulation rate | ≤±1% |
Reference
external dimensions (Length * Width * Height) |
2000*760*1300(mm) |
| Transient voltage regulation rate | -15%~+18% | Cooling method | Boosting intercooling |
| Fuel grade |
(Standard)
0 # light diesel oil (regular) Warm) |
Noise (LP7M) | Normal configuration ≤ 117dB (A) |
| 2、 Technical parameters of diesel engine | |||
| Origin (brand) | Luoyang (Eastern Red) | manufacturer | Yituo (Luoyang) Diesel Engine Co., Ltd |
| output power | 100KW | Model | LR4M3L-D |
| Number of cylinders | 4 | Compression ratio | 17.0:1 |
| Piston aperture/piston stroke | 110mm/125mm | Start mode | Electric start |
| Minimum fuel consumption rate | ≤202g/kw.h | Starting power supply | DC 24V |
| displacement | 4.75L | Speed Control | electronic speed control |
| fuel system | PT pump direct injection | Air intake system | turbocharging |
| Diesel engine type | 4-cylinder straight, 4-stroke |
Emission
limits for pollutants price |
Non Road Country II |
| 3、 Technical parameters of generator | |||
| Brand | Xingutai | Model | XGTW-80-4(80KW) |
| Excitation method | Brushless, excitation, self cooling | protection grade | IP22 |
| Voltage regulation system | AVR automatic voltage regulation | Short term overcurrent | 3-5 Ie not less than 5S |
| Insulation level | H | Overload capacity | 1.5Ie not less than 2 minutes |
| Winding material | All copper wire winding | Phase number and connection method | three-phase four-wire system |
