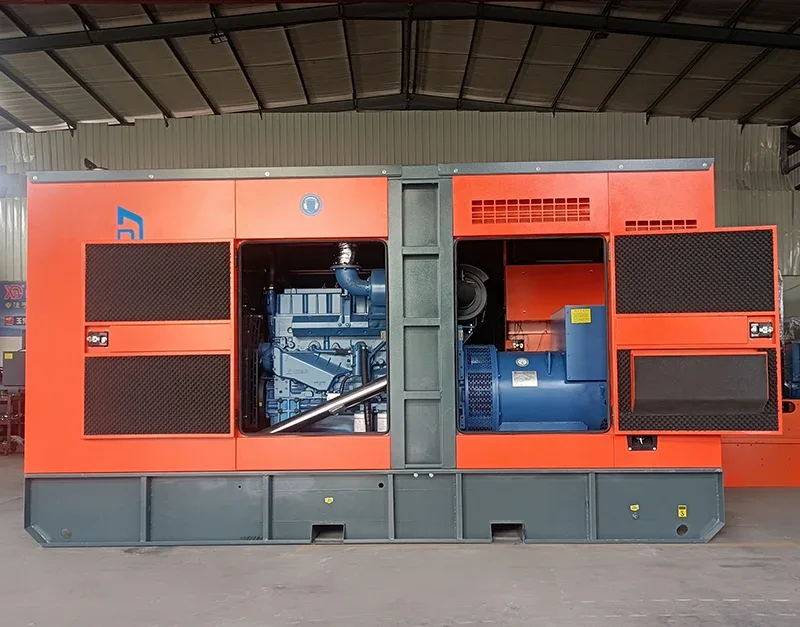

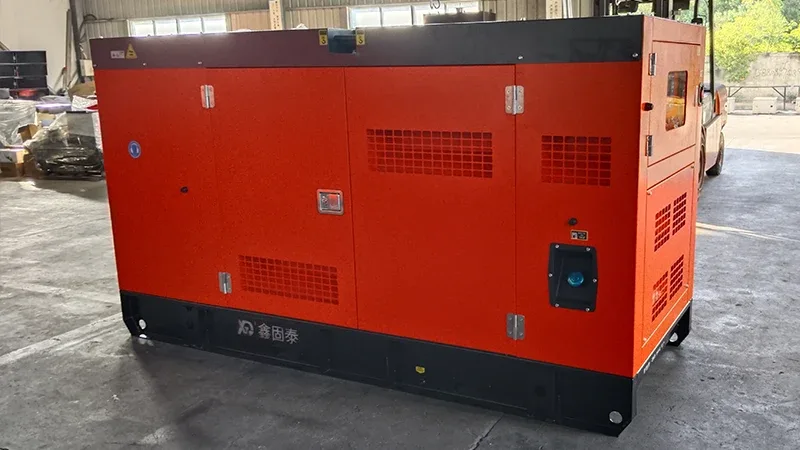

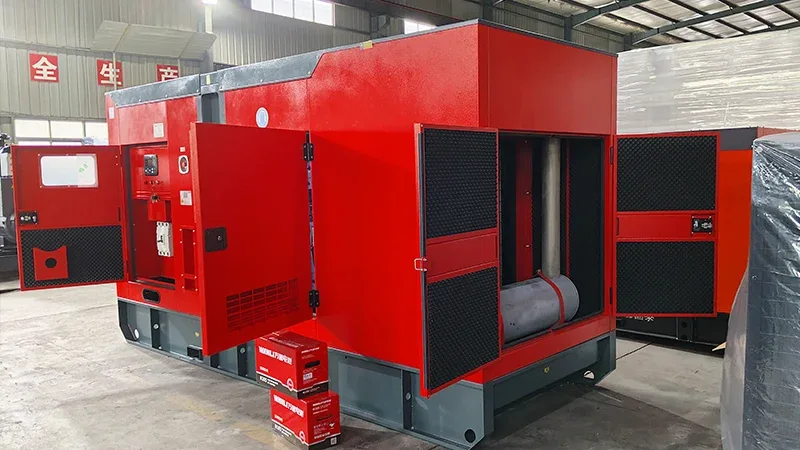

Yuchai Silent Diesel Generator Set

Gutai Machinery is a professional leader China yuchai silent diesel generator set manufacturer with high quality and reasonable price. Yuchai silent diesel generator set is a power generation equipment that integrates Yuchai's advanced diesel engine technology and silent technology. It takes Yuchai diesel engine as the core power source, and through precise cooperation with generators and other components, it can convert the chemical energy of diesel into electrical energy, providing stable and reliable power supply for various power consumption scenarios. Yuchai silent diesel generator set is suitable for various occasions that require stable power supply, including hospitals, schools, residential areas, commercial centers and other places with strict requirements on noise control.

Yuchai silent diesel generator set product performance and features:

1. High efficiency and stability: Yuchai silent diesel generator set adopts high-quality diesel engine and generator, with high efficiency and stable performance, can run for a long time in harsh environment, and ensure the stability of power supply.

2. Environmental protection and energy saving: The unit adopts advanced fuel injection technology and emission control technology, with low fuel consumption rate and less emissions, which meets environmental protection requirements.

3. Easy maintenance: The unit has a simple structure, convenient maintenance, easy maintenance and repair, and reduces the cost of use.

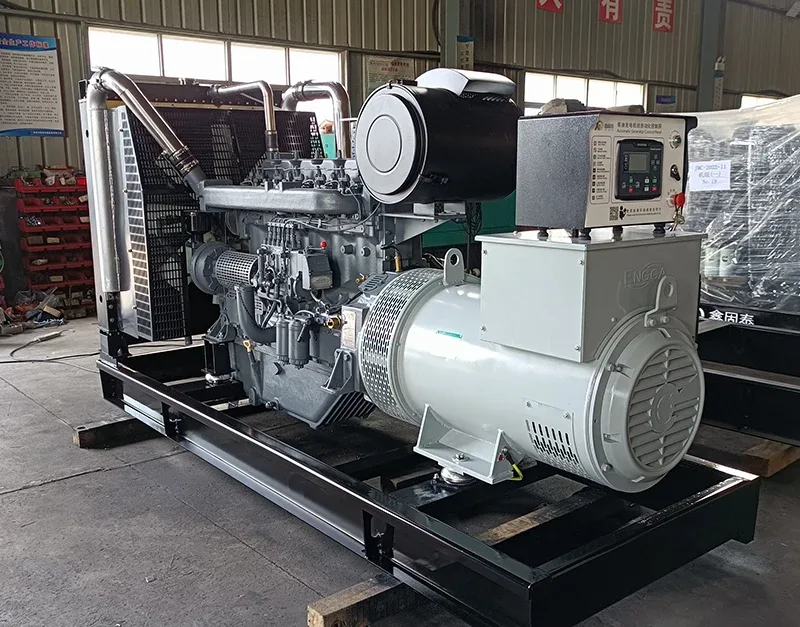

Wuxi Power Diesel Generator Set 250KW

Yuchai silent diesel generator set 250KW

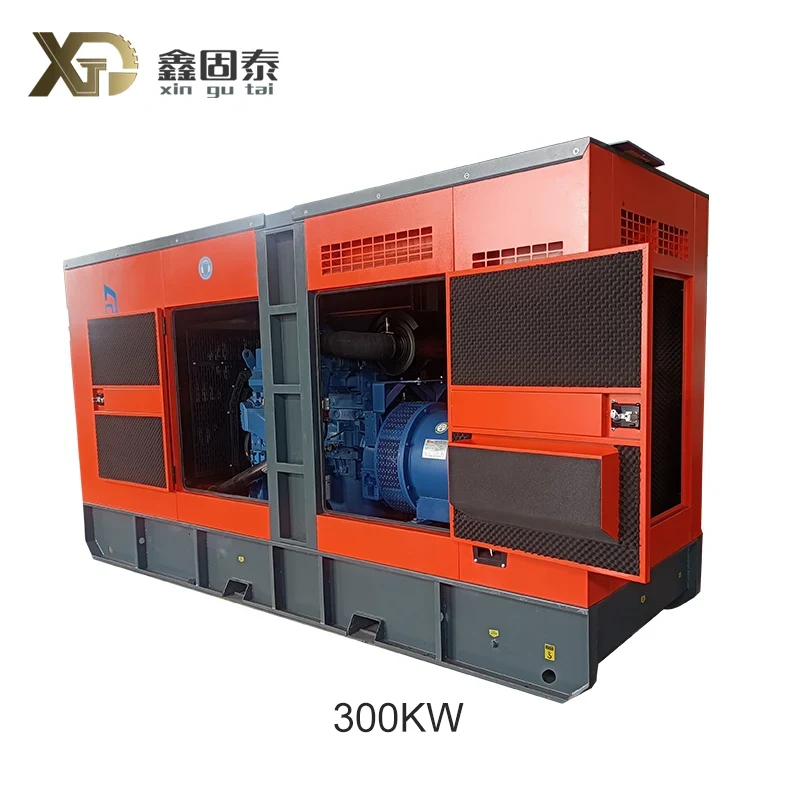

Yuchai silent diesel generator set 300KW

Yuchai silent diesel generator set 30KW

Yuchai silent diesel generator set 100KW

1、 Technical parameters of generator set
Model	XGT-100	manufacturer	Quanzhou Gutai Machinery Equipment Co., Ltd
rated voltage	400V/230V	Steady state frequency regulation	≤1%
Rated frequency	50HZ	Frequency stabilization time	≤3S
Electric system	three-phase four-wire system	Transient frequency adjustment rate	≤1%
Rated current	180A	Volatility rate	≤1%
Power factor	0.8 (lag)	Reference weight	1200Kg
Steady-state voltage regulation rate	≤±1%	Rotational speed	1500r/min
Transient voltage regulation rate	-15%~+18%	Reference external dimensions (Length * Width * Height)	2050*810*1360(mm)
Voltage recovery time	≤1S	Cooling method	Closed water cooling
Fuel grade	(Standard) 0 # light diesel oil (At room temperature)	Noise (LP7M)	Normal configuration ≤ 117dB (A)
2、 Technical parameters of diesel engine
Origin (brand)	Guangxi Yuchai	manufacturer	Guangxi Yuchai Ship Electric Power Co., Ltd
output power	132KW	Model	YC4A180L-D20
Number of cylinders	4	Compression ratio	17.5:1
Piston aperture/piston stroke	108mm/132mm	Start mode	Electric start
oil consumption	≤215g/kw.h	Starting power supply	DC 24V
Exhaust volume	4.837L	Speed Control	electronic speed control
fuel system	PT pump direct injection	Air intake system	Turbocharged air cooling
Diesel engine type	4-cylinder inline, 4-stroke	Emission limits for pollutants	Non road country Phase II
3、 Technical parameters of generator
Brand	Xingutai	Model	XGTW-100-4(100KW)
Excitation method	Brushless, excitation, self cooling	protection grade	IP22
Voltage regulation system	AVR automatic voltage regulation	Short term overcurrent	3-5 Ie not less than 5S
Insulation level	H	Overload capacity	1.5Ie not less than 2 minutes
Winding material	All copper wire winding	Phase number and connection method	three-phase four-wire system
