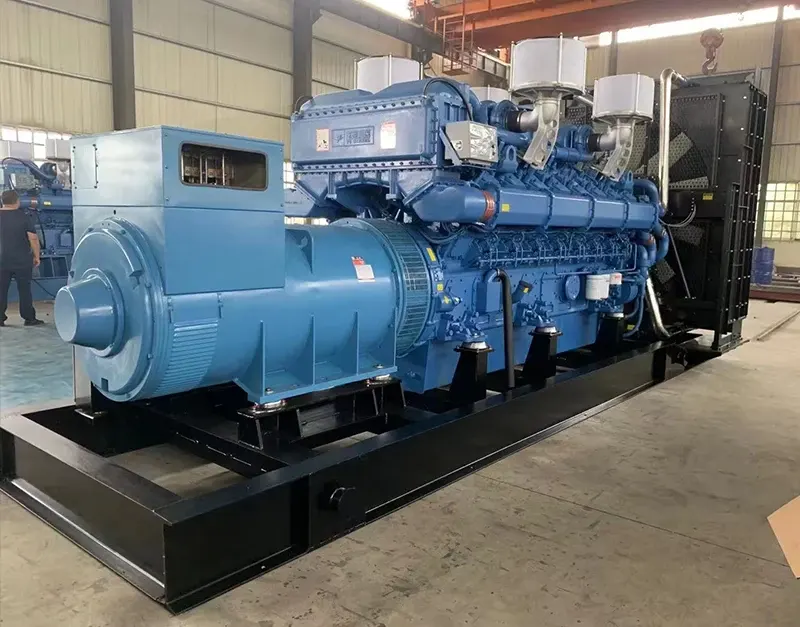

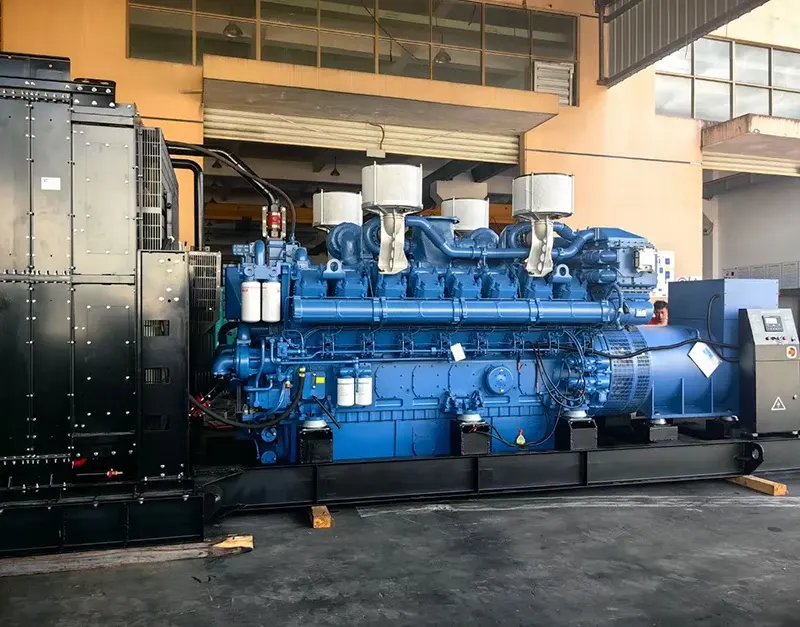

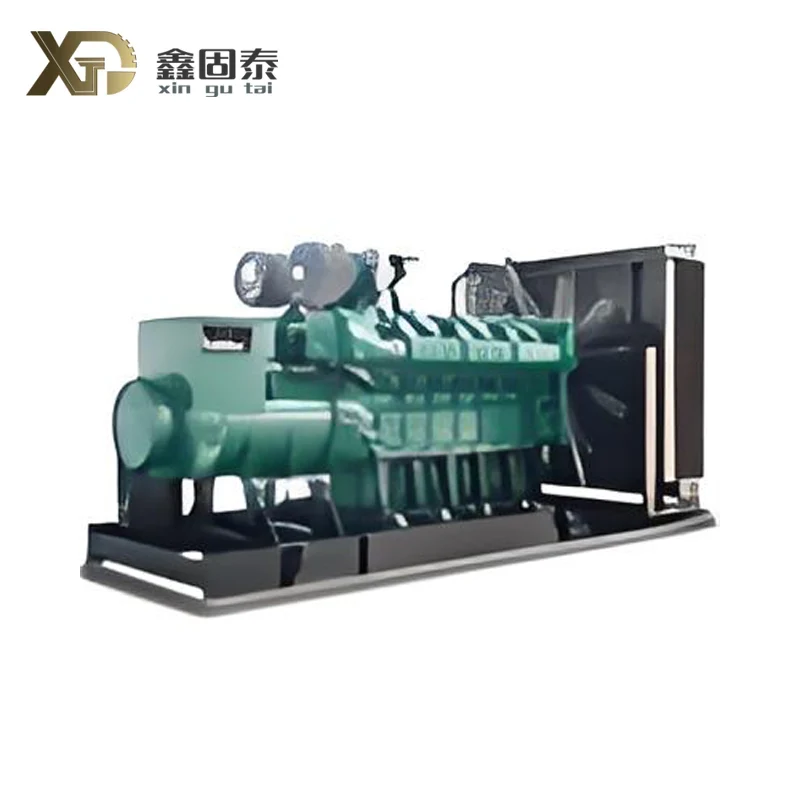

Large Diesel Generator Set

High quality large diesel generator set is offered by China manufacturer Gutai Machinery. Large diesel generator set is mainly used for commercial and industrial purposes and can provide a large amount of electricity.

Send Inquiry

Product Description

Gutai Machinery is China manufacturer and supplier who mainly produces large diesel generator set with many years of experience. Large diesel generator set is a power generation equipment that uses diesel as fuel. It is mainly used for commercial and industrial purposes and can provide a large amount of electricity.

Large diesel generator set usually consists of these parts:

1. Diesel engine This is the core component of the generator set, responsible for converting the chemical energy of diesel into mechanical energy. The diesel engine generates power through a four-stroke working cycle (intake, compression, injection combustion expansion, exhaust).

2. The generator converts the mechanical energy of the diesel engine into electrical energy. The generator is usually a three-phase AC generator with a high output voltage to reduce current and wire losses.

3. The control system includes control panels, sensors, etc., which are used to monitor and adjust the operating status of the generator to ensure its stable power supply. Large diesel generator set has a wide power range, ranging from tens of kilowatts to hundreds of kilowatts. Common power ranges include 800KW, 500KW, etc.

These generator sets are suitable for various scenarios, such as commercial buildings, factories, hospitals, data centers, etc., and can meet the needs of large buildings or power systems. They can be used as emergency power sources during power outages to ensure the normal operation of key equipment.

1、 Technical parameters of generator set
Unit model	XGT-2000	Output power		2000KW
Voltage recovery time	≤ 1Ｓ	Steady state frequency regulation		≤ 1％
Rated voltage	400V/230V	Frequency stabilization time		≤ 3 Ｓ
Rated frequency	50HZ	Transient frequency adjustment rate		≤ 1％
Electric system	three-phase four-wire system	Volatility rate		≤ 1％
Rated current	3600A	Reference weight		17500Kg
Power factor	0.8 (lag)	Rotational speed		1500r/min
Steady-state voltage regulation rate	≤±1%	Reference external dimensions (Length * Width * Height)		735026702950（mm）
Transient voltage regulation rate	-15%～+18％	Cooling method		Closed water cooling
Fuel grade	(Standard) 0 # light diesel oil (at room temperature)	Noise (LP7M)		≤117dB(A)
2、 Technical parameters of diesel engine
Origin (brand)	Guangxi (Yuchai)	manufacturer		Guangxi Yuchai Ship Electric Power Co., Ltd
Output power	2426KW	model		YC16VC3300-D31
Number of cylinders	16	Compression ratio		13.5:1
Piston aperture/piston stroke	200mm/210mm	Starting method		Electric start
Minimum fuel consumption rate	≤195g/kw.h	Starting power supply		DC 24V
Exhaust volume	105.56L	Speed regulation method		Electronic speed regulation
Applicable ambient temperature	-10℃～40℃	Fuel system		Electric control unit pump
Diesel engine type	V-shaped 16 cylinder, 4-stroke	Emission limits for pollutants		Non road country III stage
3、 Technical parameters of generator
Brand	Xingutai		Output power		XGTW-2000-4（2000KW）
Excitation method	Brushless, excitation, self cooling		Protection level		IP22
Pressure regulating system	AVR automatic voltage regulation		Short term overcurrent		3-5 Ie not less than 5S
Insulation level	H		Overload capacity		1.5Ie not less than 2 minutes
Winding material	All copper wire winding		Phase number and connection method		Three-phase four wire system
Control system function: The unit is equipped with an LCD display screen, self starting and automatic shutdown function,intelligent control system, and protection functions such as low oil pressure, high water temperature, overspeed, low speed, overload, and low electric storage voltage.
