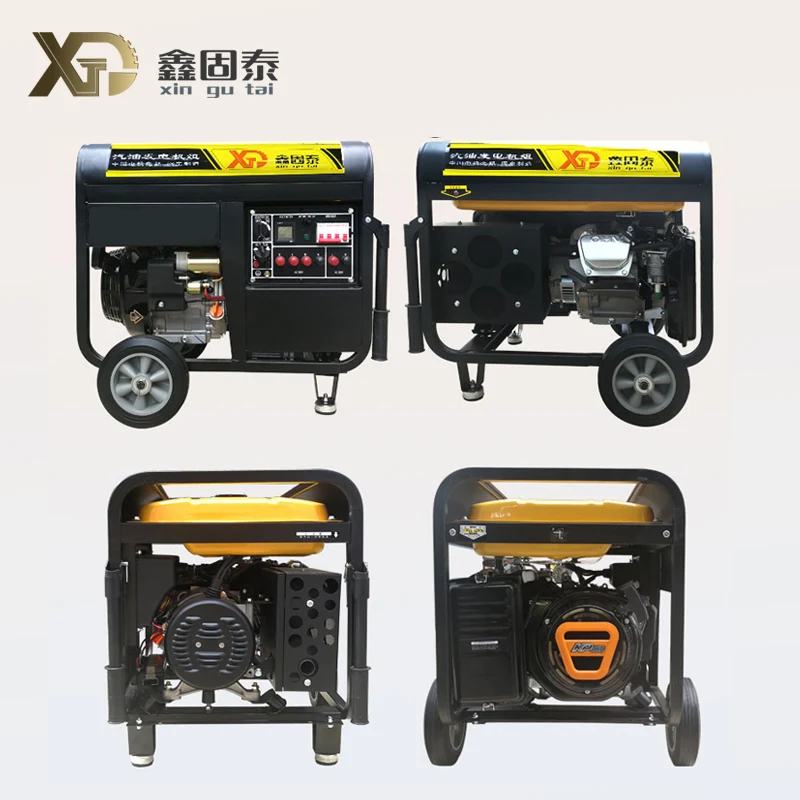

Three-Phase Manual Gasoline Generator
  • Three-Phase Manual Gasoline GeneratorThree-Phase Manual Gasoline Generator

Three-Phase Manual Gasoline Generator

Gutai Machinery is China manufacturer and supplier who mainly produces three-phase manual gasoline generator with many years of experience. It is suitable for a variety of occasions, such as construction sites, outdoor activities, and home backup power supply.

Gutai Machinery is a professional China three-phase manual gasoline generator manufacturer and supplier. Three-phase manual gasoline generator is a device that converts mechanical energy into electrical energy by driving the generator through an internal combustion engine. Its working principle is that the internal combustion engine burns gasoline to generate power, drives the generator to rotate, and the coil inside the generator rotates in the magnetic field to generate alternating current. It is suitable for a variety of occasions, such as construction sites, outdoor activities, and home backup power supply.


Three-phase manual gasoline generator main product features:

1. Stable power: It adopts advanced control system to ensure stable output voltage and frequency to meet the normal operation requirements of electrical equipment.

2. Low fuel consumption: The optimized internal combustion engine structure improves fuel utilization and reduces operating costs.

3. Simple maintenance: The generator has a simple structure and is easy to maintain. Users can easily perform daily inspections and maintenance.

4. Wide range of applications: It is suitable for field operations, construction sites, temporary power supply and other scenarios to meet the power needs of different users.

5KW380V gasoline open frame parameters
model XGT6500S
Single phase rated output power 5.0KW
Maximum output power 5.5KW
voltage 380V
Rated current 9A
Generator Type Single cylinder, four stroke, CHV25, Tilt, forced air cooling
Engine model 190F
Cylinder diameter * stroke 90*64
Compression ratio 80:1
Starting system Electric start/ATS
ignition system Transistor contactless ignition
Displacement (CC) 420CC
Oil volume 0.9L
Fuel volume 25L
Rated frequency 50HZ
Voltage regulation system Automatic voltage regulation (without the need for a voltage regulator)
Power factor 1.0
Charging Voltage 12V(DC)
Charging current 8.3A(DC)
Continuous running time 9h
Size 680*515*530mm
noise 75dB(A)(≤7m)
Net weight/Gross weight 82KG/84KG
The ATS function, also known as fully automatic, is a dual power supply device that automatically disconnects when the mains power is on and automatically starts when the mains power is off



Hot Tags: Three-Phase Manual Gasoline Generator, China, Manufacturer, Supplier, Factory
