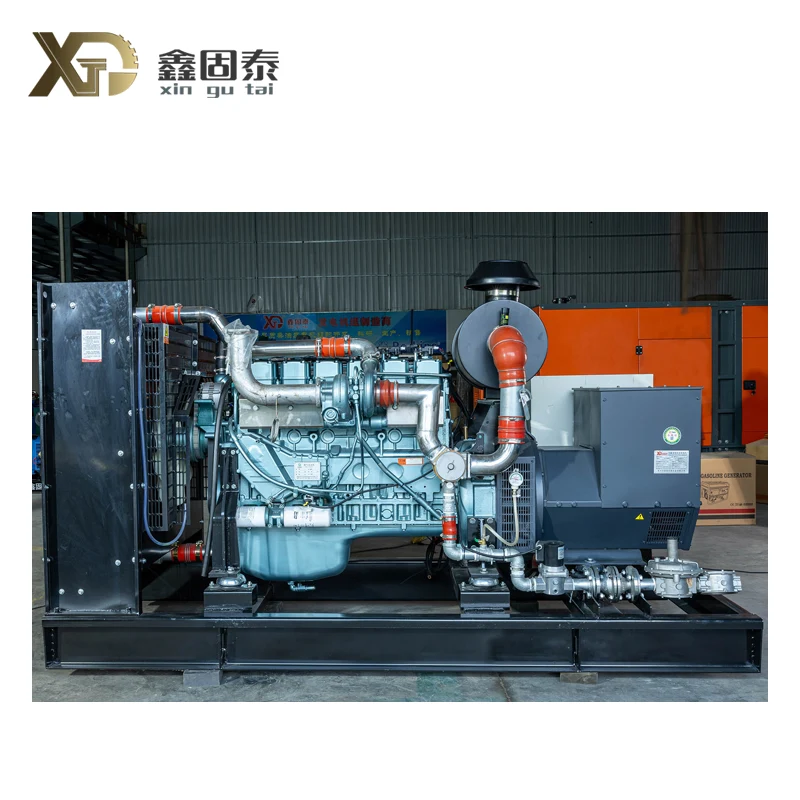

Gas Generator Set

As the professional manufacturer, Gutai Machinery would like to provide you gas generator set. Gas generator set has high efficiency and can meet the needs of industrial and commercial applications with high power and large instantaneous load.

Gutai Machinery is a leading China gas generator set manufacturer. Gas generator set is a new type of highly efficient new energy generator that uses liquefied gas, natural gas and other combustible gases as combustion materials, replacing gasoline and diesel as engine power. The gas generator consists of two parts: the engine and the generator. The engine converts the energy in the gas into mechanical energy, while the generator converts the mechanical energy into electrical energy. Gas generator set has high efficiency and can meet the needs of industrial and commercial applications with high power and large instantaneous load.


The advantages of gas generator set are as follows:

1. Good power generation quality

Since the generator only has rotational motion when working, the electric adjustment has a fast response speed and works particularly smoothly. The output voltage and frequency of the generator are highly accurate and have small fluctuations. When the load is suddenly increased by 50% and 75%, the unit is very stable. It is better than the electrical performance indicators of diesel generator sets.


2. Good starting performance and high starting success rate

The time from cold start to full load is only 30 seconds, while the international regulations stipulate that diesel generators are loaded for 3 minutes after successful start. The gas turbine generator set can guarantee the success rate of starting under any ambient temperature and climate.


3. Low noise and vibration

Since the gas turbine is in a high-speed rotation state, its vibration is very small, and the low-frequency noise is better than that of diesel generator sets.


4. The combustible gas used is a clean and cheap energy source

Such as: gas, straw gas, biogas, etc., the generator sets using them as fuel are not only reliable and low-cost, but also can turn waste into treasure without causing pollution.

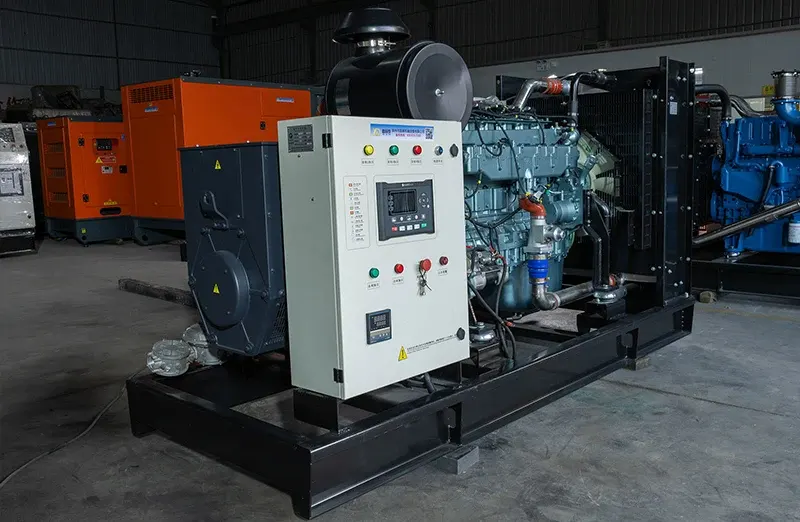

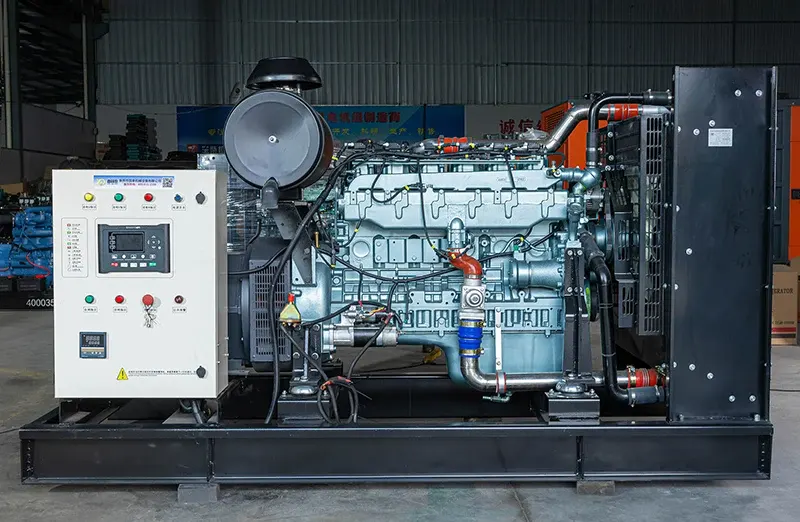

Gas generator set 200KW

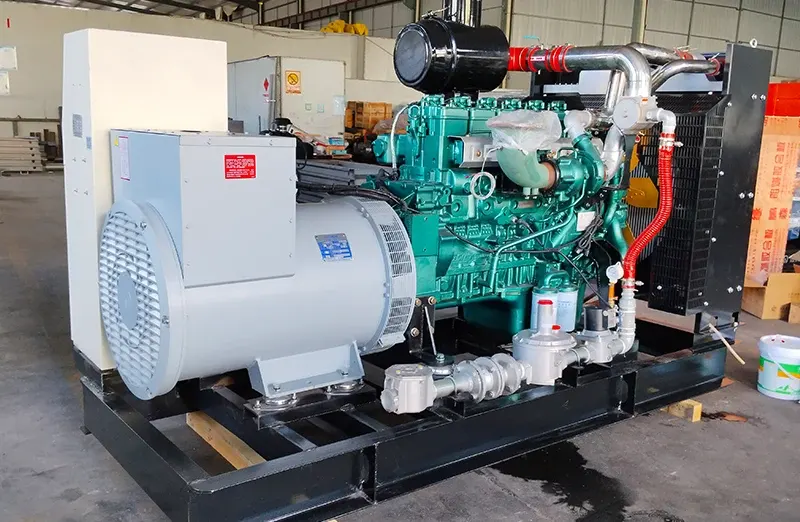

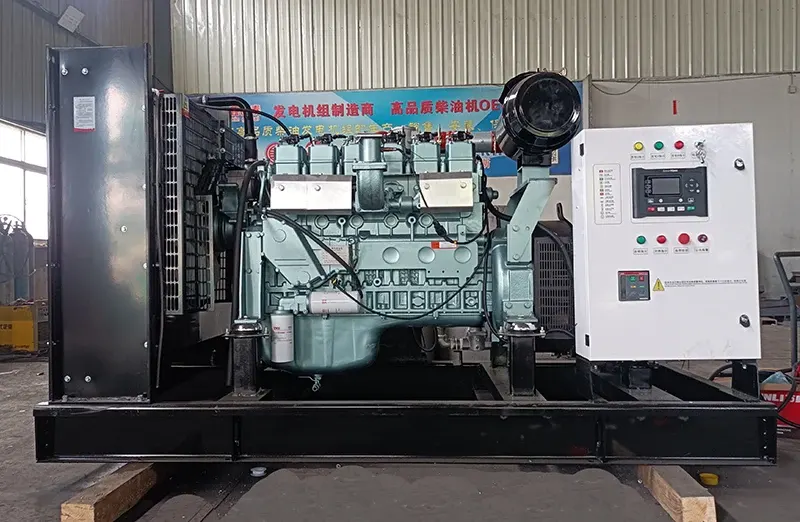

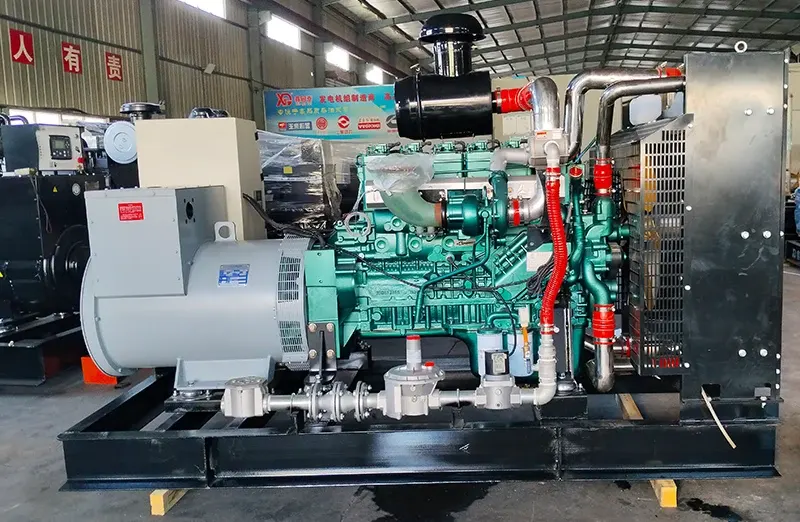

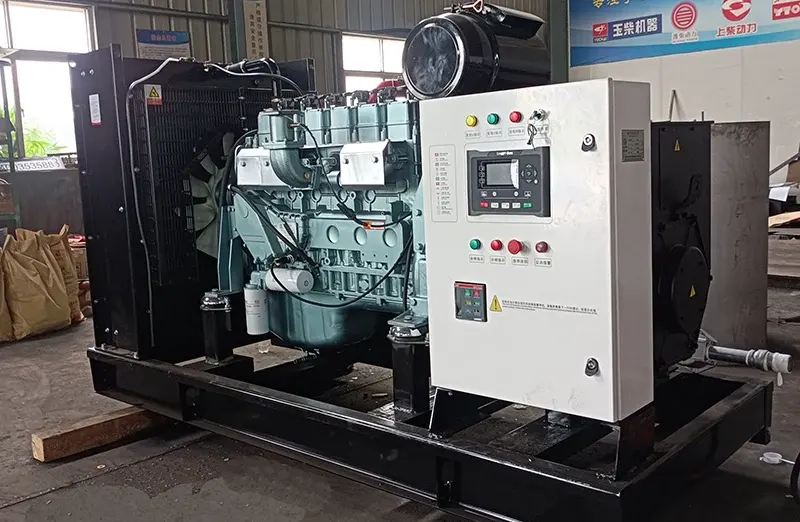

Gas generator set 100KW DH-ST10

1、 Technical parameters of generator set
Model XGT-100 manufacturer Quanzhou Gutai Machinery Equipment Co., Ltd
Voltage recovery time ≤1S Steady state frequency regulation < 1%
rated voltage 400V/230V Frequency stabilization time ≤ 3 S
Rated frequency 50HZ Transient frequency adjustment rate ≤ 1%
Electric system three-phase four-wire system Volatility rate ≤1%
Rated current 180A Reference weight 1300Kg
Power factor 0.8 (lag) Rotational speed 1500r/min
Steady-state voltage regulation rate ≤±1% Reference external dimensions
(Length * Width * Height)
2700x1170x1580(mm)
Transient voltage regulation rate -15%~+18% Cooling method Boosting intercooling
Fuel grade biogas Noise (LP7M) Normal configuration ≤ 117dB (A)
